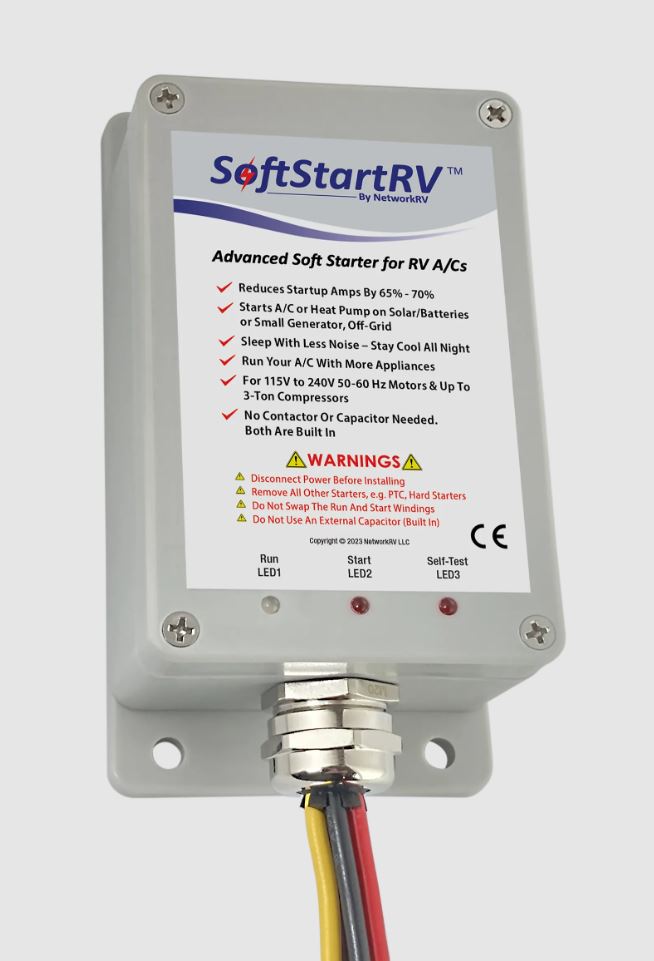

SoftStartRV Air Conditioner Compressor Soft Starter, 2.9 in Width x 5.6 in Height x 2 in Depth Overall Dimension - SSRV3T3

SoftStartRV is the best RV A/C soft starter kit for these situations. SoftStartRV is an embedded design air-conditioner soft start controller for single phase A/C power systems. It regulates the startup voltage of the compressor and/or motor intelligently to easily reduce the inrush and surge current while starting up. As a result, much less power is needed from on-site the A/C power supply system - while enabling full startup torque for compressors and motors.

SoftStartRV effectively limits the inrush current, and improves the stability of the power supply while reducing transient voltage drops that may affect or break down other loads. This eliminates the need for excessive power supply, which results in: - Reduced equipment costs, - Efficiencies in power supply capacity, charge meter, circuit breaker, and power wireline capacity. Ultimately, it extends the service life of the motor or compressor.

Not only does the SoftStartRV ease strain on the power source, but it's also less stressful for the compressor since it starts more gently. Additionally, it provides valuable protection by shutting down the compressor if the power source - or the connection to the compressor - is briefly interrupted, then it re-attempts a soft start after a three-minute delay. SoftStartRV is a compact, lightweight cost-effective soft start controller with fireproof housing, and sealed by resin.

As a result, it can withstand extreme weather, and survive in harsh environments (such as installation within outdoor rooftop air conditioner units). This makes SoftStartRV a cost-effective RV air conditioner soft start kit solution with high reliability and longevity.

Additional Details

• Single SKU compatible with all brands of a/c unit.
• Reduces start up amp draw by 65-70 percent.
• Waterproof enclosure, an industry exclusive, unaffected in wet environments.
• Limited 3 year warranty.
• Used to reduce the air conditioner start up power demand on the AC power source.
• For use with all RV rooftop and basement air conditioners.
• Up to 3 watt power consumption.
• 3 minute protection restart time interval.
• 48 milliamp current consumption.
• 1 + 0.5 seconds soft start-up time.
• Over 45000 hours operation hours.
• Over 100000 times effective soft start on/ off service.
• -40 degree fahrenheit to 180 degree fahrenheit working temperature.

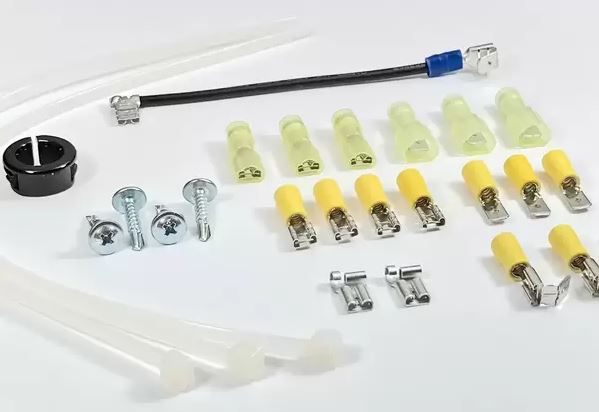

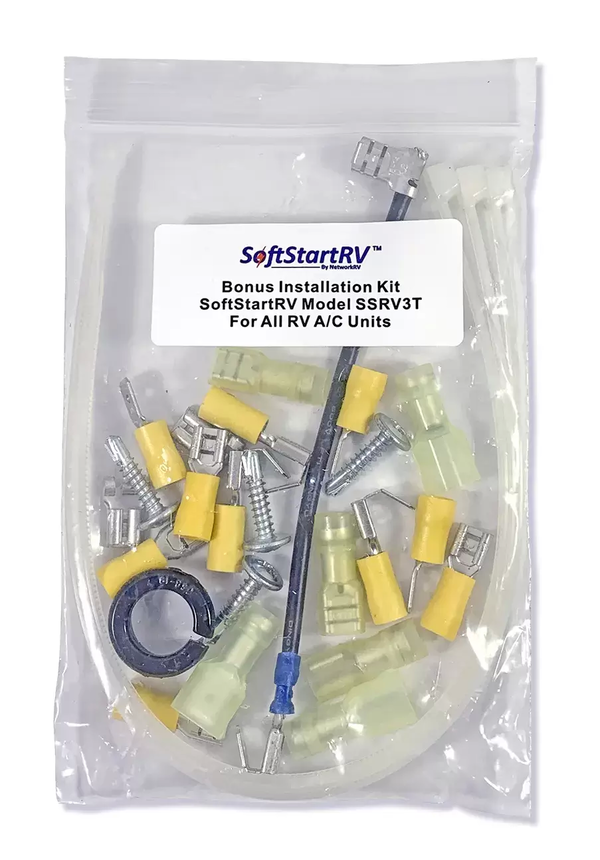

• With five 3 foot long wire pigtail/ instruction guide/ complete accessory kit: wiring connectors/ zip ties/ hardware fasteners/ waterproof enclosure.
