MSD Ignition Ignition Coil, 40000 V, Effective Up To 12500 RPM, Black - 82073

SKU: 82073

$79.95

MSD Ignition Ignition Coil, 40000 V, Effective Up To 12500 RPM, Black - 82073

1 turns ratio and lower primary resistance produce high voltage output.
MSD Ignition Ignition Coil, 40000 V, Effective Up To 12500 RPM, Black - 82073

Improved output coil for electronic ignitions, and MSD ignitions.
MSD Ignition Ignition Coil, 40000 V, Effective Up To 12500 RPM, Black - 82073

Efficient winding design and assembly creates a compact housing.
MSD Ignition Ignition Coil, 40000 V, Effective Up To 12500 RPM, Black - 82073

Primary and secondary windings are encased in ciba polyurethane.
MSD Ignition Ignition Coil, 40000 V, Effective Up To 12500 RPM, Black - 82073

Dupont rynite housing with a tall tower and brass primary terminals.
Out of stock

Shipping & Returns

Shipping

Most in-stock products ship within 1-3 business days. Your available shipping method and final shipping cost will be shown at checkout. Qualifying standard-shipping orders of $150 or more ship free, while larger items may require oversized or freight delivery.

For more information, view our Shipping Policy.

Returns

Changed your mind? Most products can be returned within 30 days of delivery as long as they are unused, uninstalled, and in their original condition.

Contact us to start a return, and we’ll guide you through the next steps.

For complete details, view our Returns & Refunds Policy.

Warranty

Available warranty coverage is provided by the manufacturer and varies by brand and product. Modridge assists customers with eligible warranty claims and helps coordinate the review process with the manufacturer.

Contact us before returning, repairing, modifying, or discarding a product that may be defective. Order information, photographs, installation details, and diagnostic information may be required.

For coverage details and claim instructions, review our Warranty Policy.

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
MSD Ignition Ignition Coil, 40000 V, Effective Up To 12500 RPM, Black - 82073

$79.95

$79.95

40000 V

Maximum Voltage

Epoxy Filled

Internal Construction

1 Tower

Coil Style

Product Description

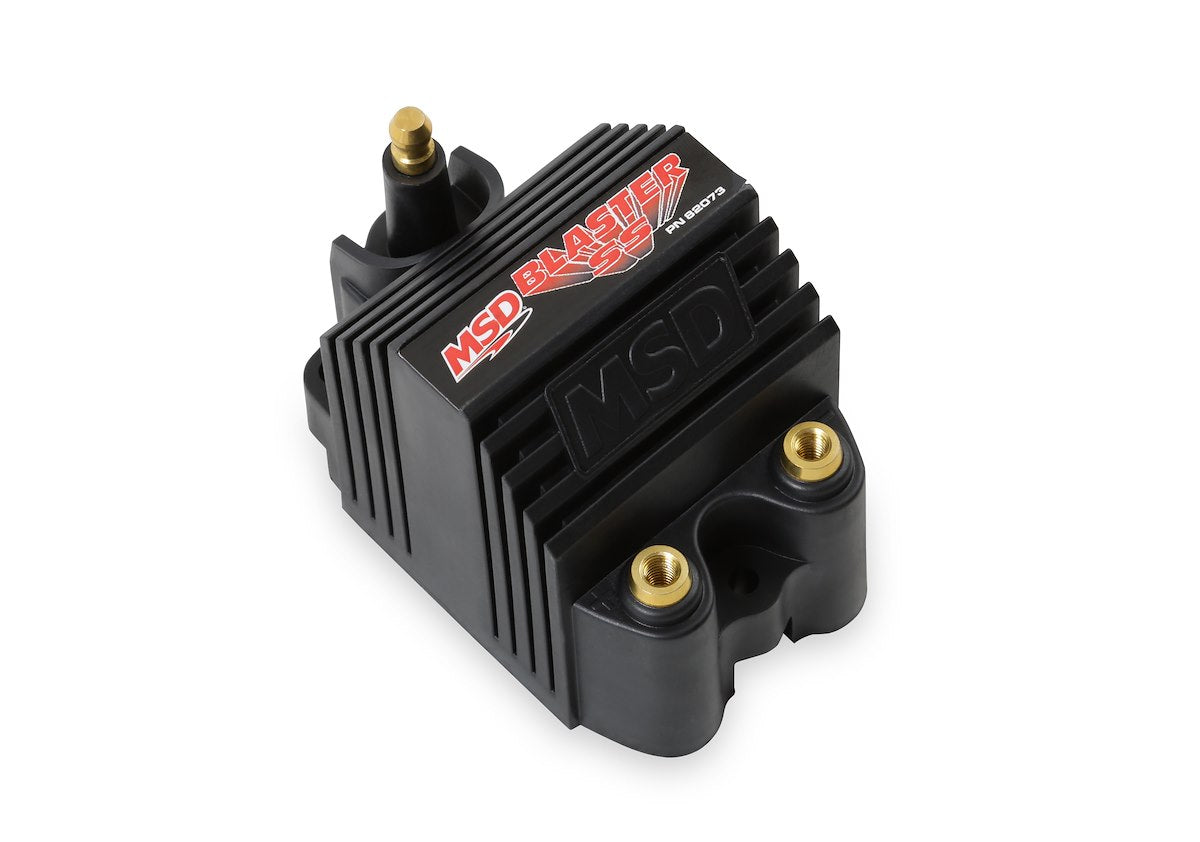

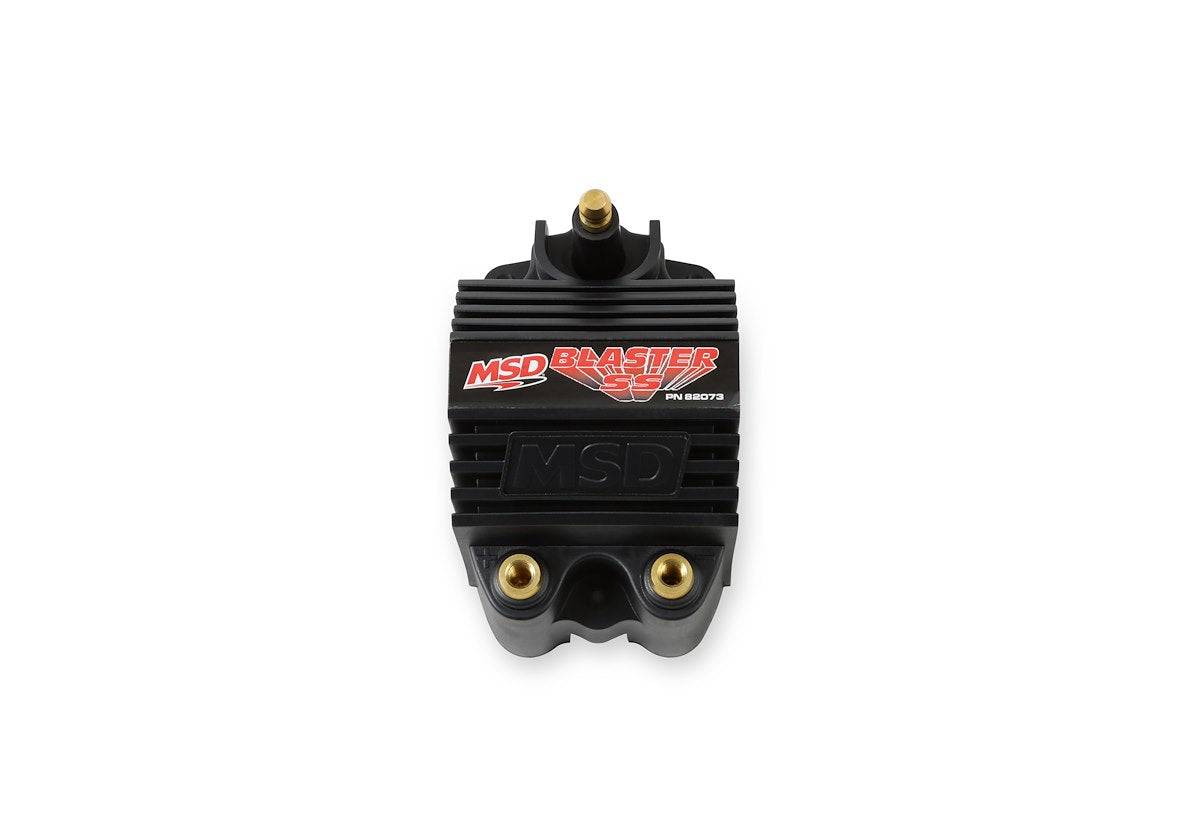

Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 Milliamps with a maximum Voltage output of 40,000 Volts. The secondary windings are wound on a segmented bobbin which reduces the chance of voltage breakdown between the primary and secondary windings.

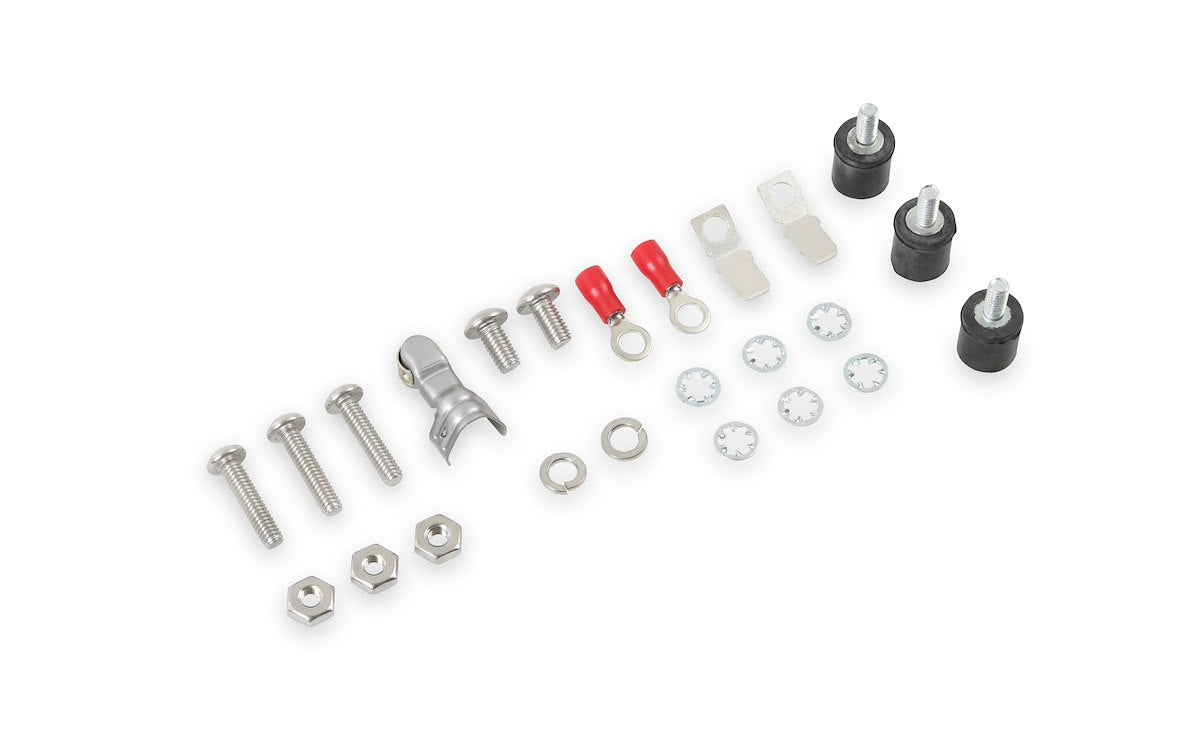

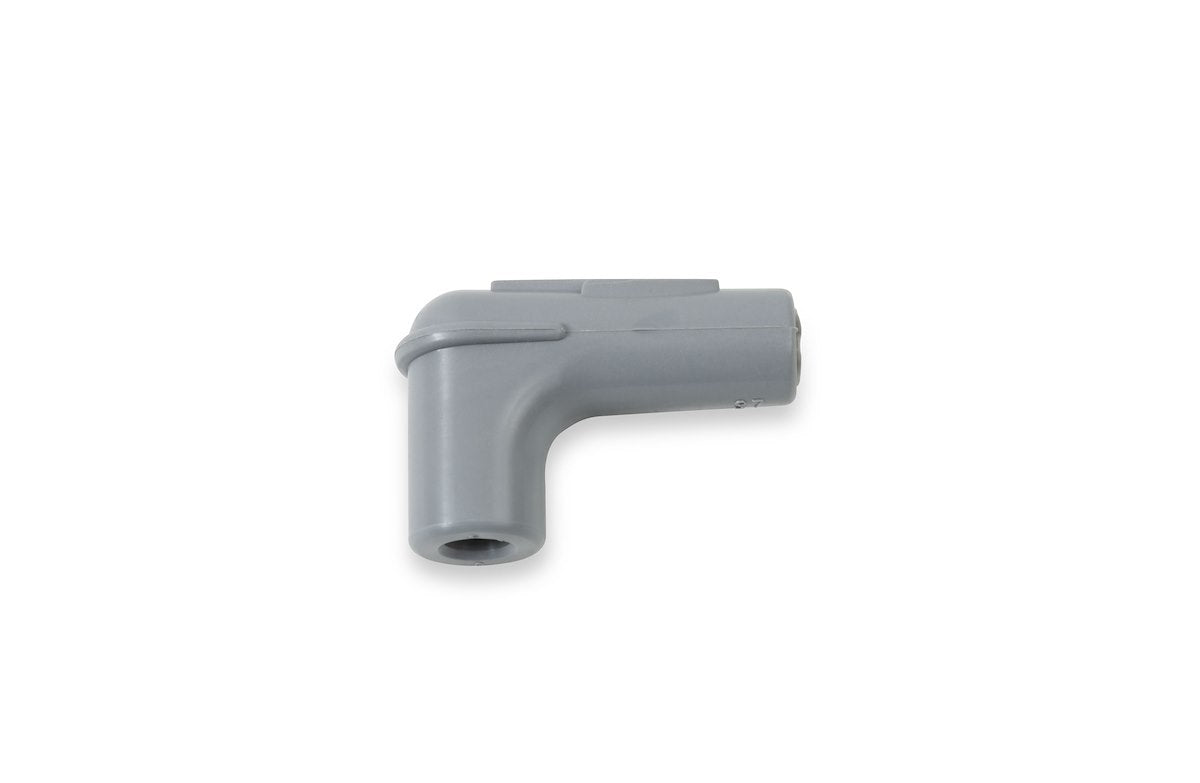

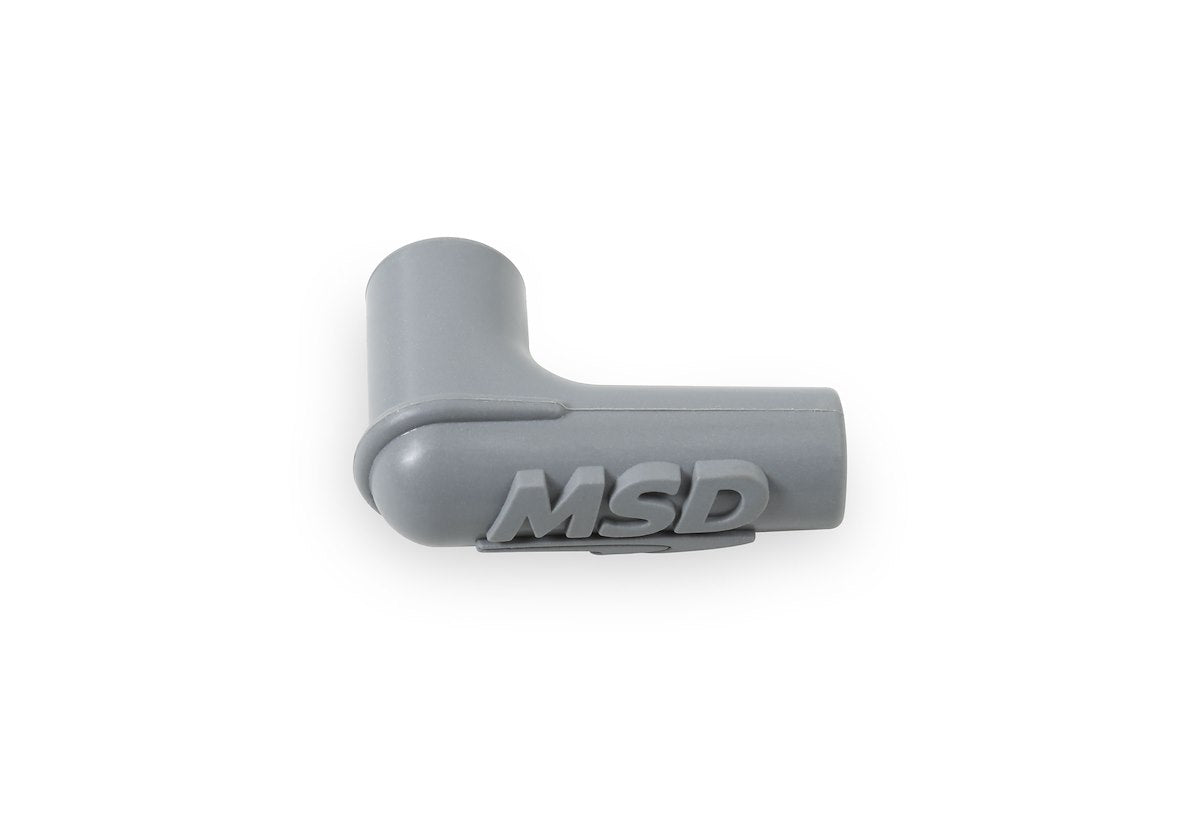

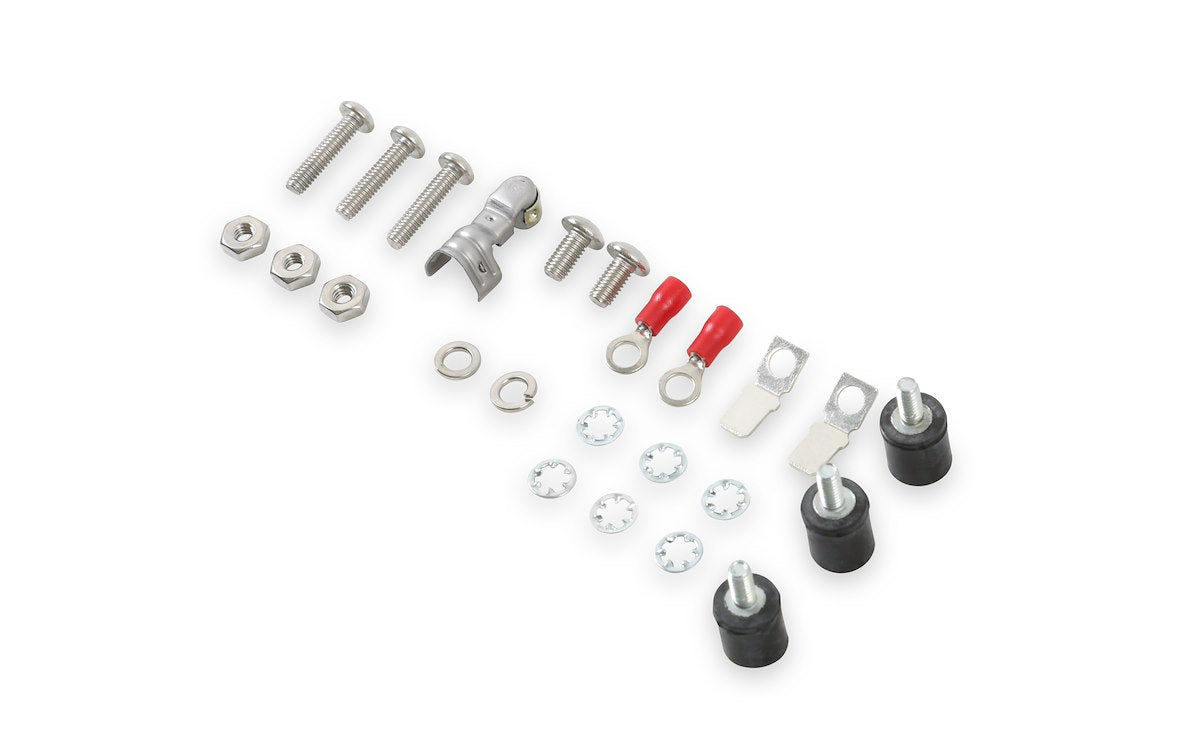

For more protection, these windings are encased in a polyurethane compound for complete protection against vibration. The Blaster SS features brass terminals and a sturdy Rynite housing. It is supplied with a 90 Degree boot, terminal and vibration mounts. A great addition to CD Ignitions and some stock applications.


Additional Details

  • 70:1 turns ratio and lower primary resistance produce high voltage output.
  • Limited 1 year warranty.
  • Single tower coil.
  • 0.355 ohms primary resistance/4.4K secondary resistance/70:1 turns ratio/6.9mH inductance/300mA peak current/220uS spark duration.
  • Effective up to 12500 RPM.

Specifications

Recommended Use
Street
Coil Style
1 Tower
Internal Construction
Epoxy Filled
Maximum Voltage
40000 Volt
Coil Wire Attachment Type
Male/ HEI
Color
Black
Primary Resistance
0.355 Ohms
Secondary Resistance
4.4 Kilo Ohms
Diameter (IN)
Not Applicable
Height (IN)
2.65 Inch
Includes Mounting Bracket
No
Includes Coil Wire
No
Includes Ballast Resistor
No

Installation & Documents


8207.pdf
msd_brand_warranties.pdf
