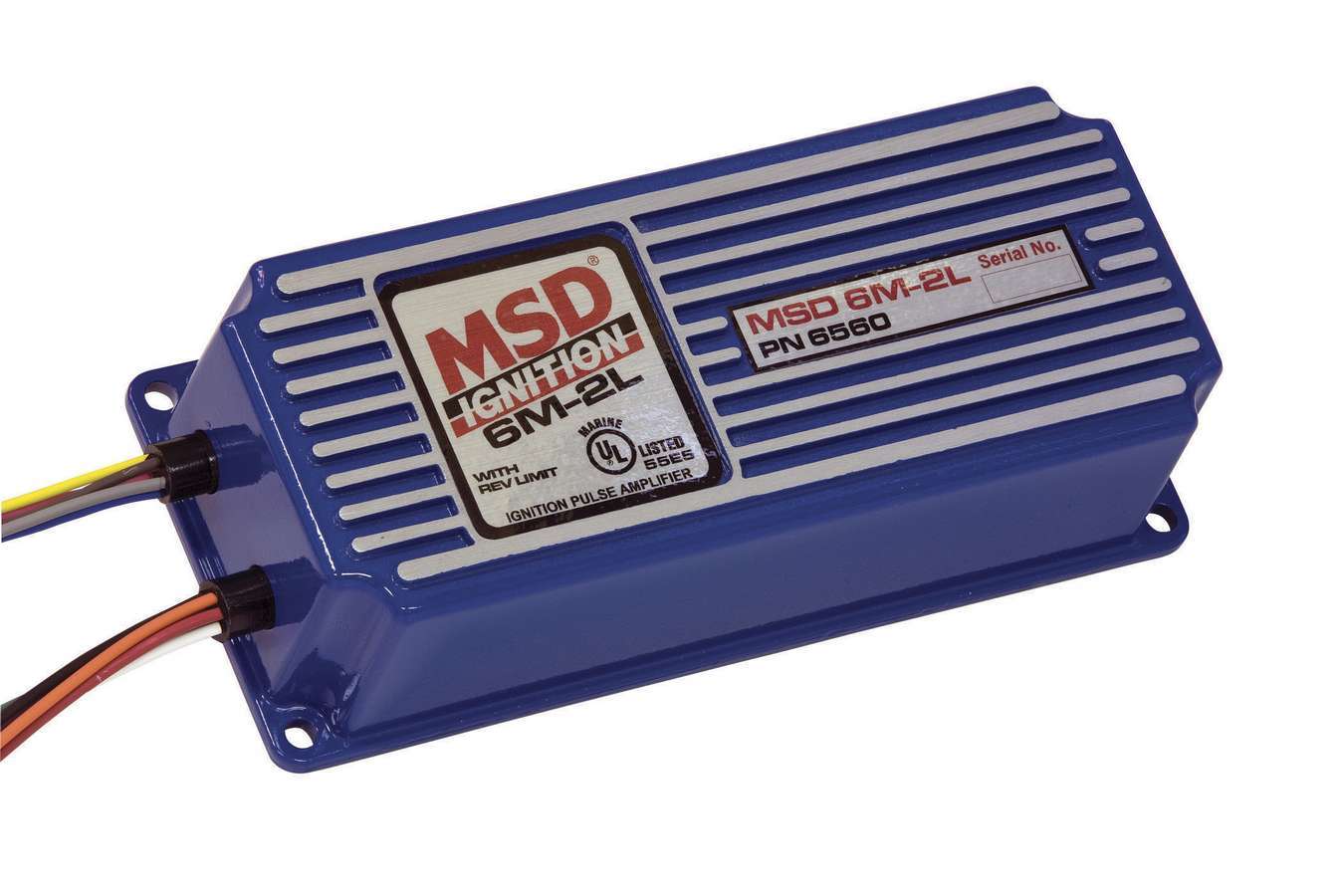

MSD Ignition Ignition Box 6560 — product image 1

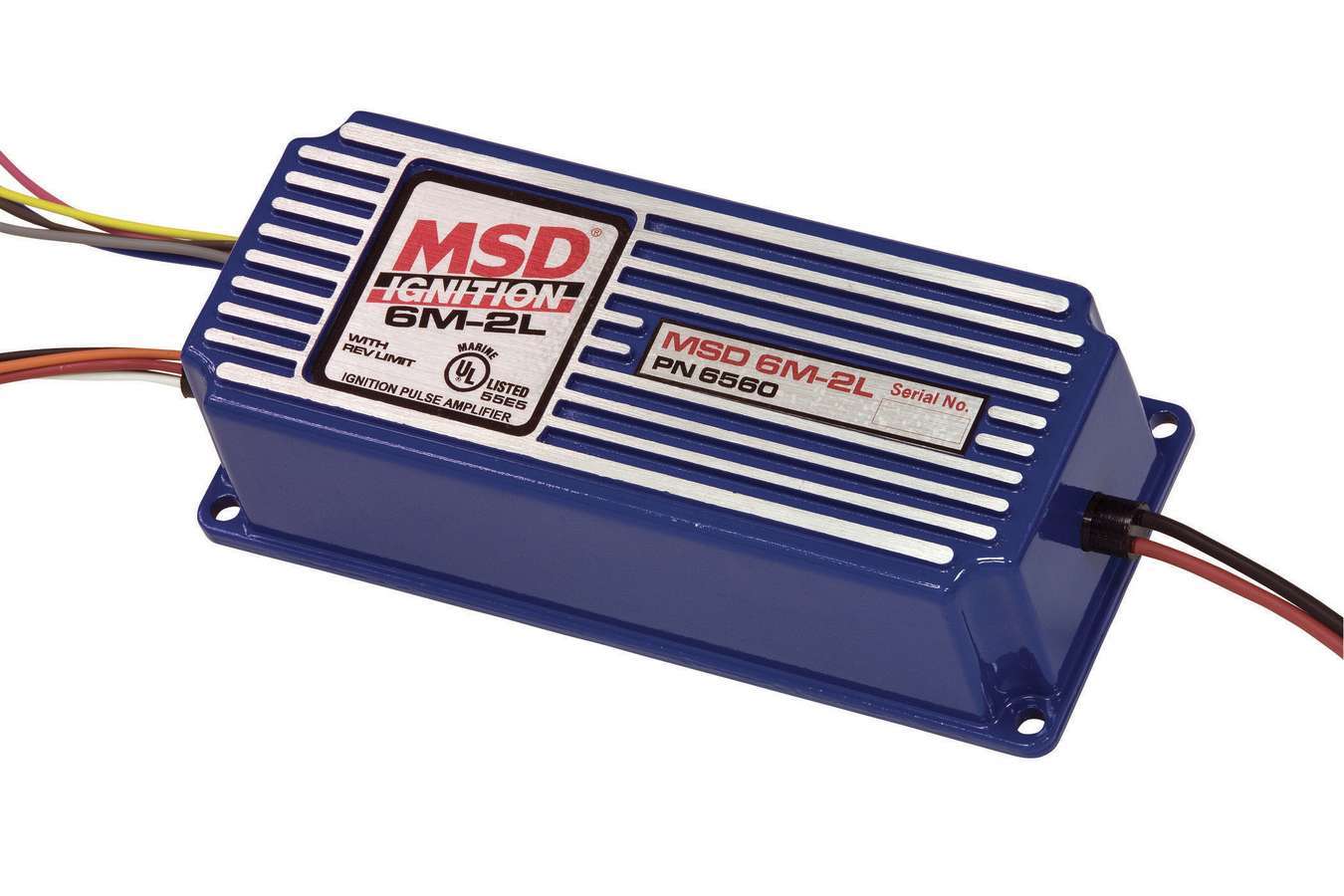

MSD Ignition Ignition Box 6560 — product image 2

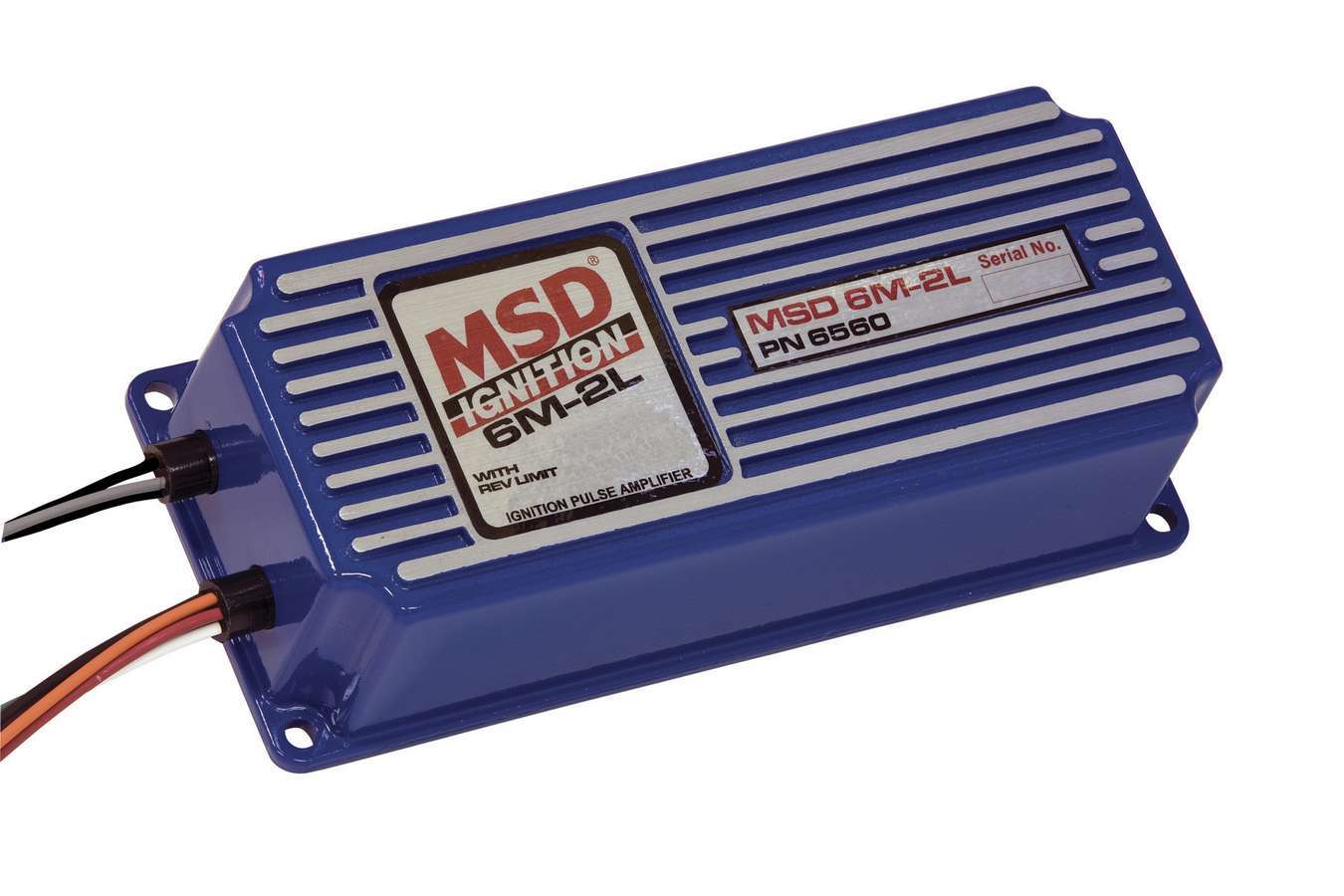

MSD Ignition Ignition Box 6560 — product image 3

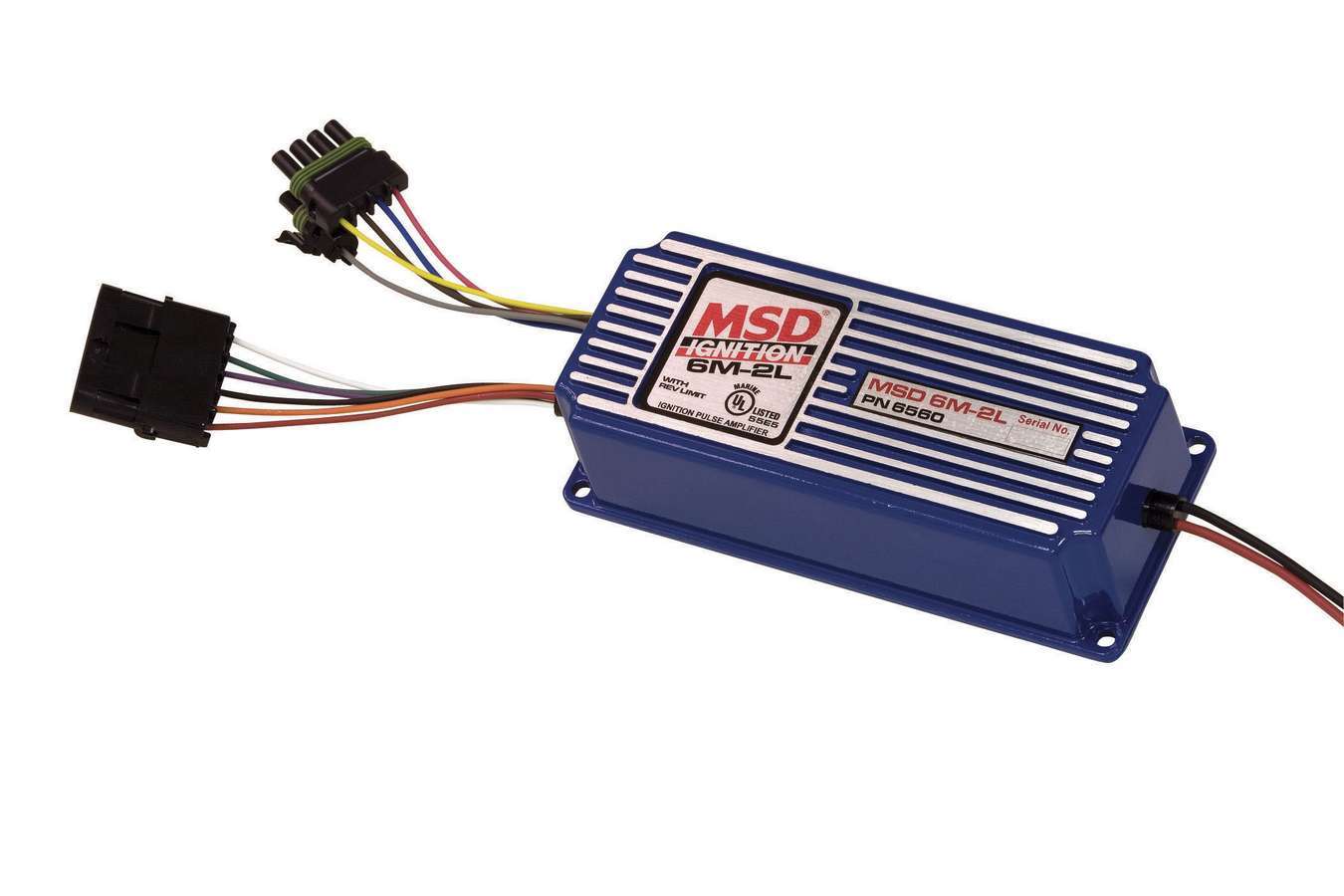

MSD Ignition Ignition Box 6560 — product image 4

Authorized Dealer

MSD Ignition Ignition Box, 6M-2 L, Analog, 45000V — 6560

SKU: 6560

$599.95

MSD Ignition Ignition Box, 6M-2 L, Analog, 45000V — 6560

Current draw / 1000 RPM is specified at 1 amp.
MSD Ignition Ignition Box, 6M-2 L, Analog, 45000V — 6560

Measures 3.5 in wide by 8 in long and 2.25 in high.
MSD Ignition Ignition Box, 6M-2 L, Analog, 45000V — 6560

The maximum RPM is 15000.
MSD Ignition Ignition Box, 6M-2 L, Analog, 45000V — 6560

The maximum voltage requirement is 18 Volts.
MSD Ignition Ignition Box, 6M-2 L, Analog, 45000V — 6560

The minimum voltage requirement is 12 Volts.
2 In Stock - Ships in 1-3 days

Shipping & Returns

Shipping

Most in-stock products ship within 1-3 business days. Your available shipping method and final shipping cost will be shown at checkout. Qualifying standard-shipping orders of $150 or more ship free, while larger items may require oversized or freight delivery.

For more information, view our Shipping Policy.

Returns

Changed your mind? Most products can be returned within 30 days of delivery as long as they are unused, uninstalled, and in their original condition.

Contact us to start a return, and we’ll guide you through the next steps.

For complete details, view our Returns & Refunds Policy.

Warranty

Available warranty coverage is provided by the manufacturer and varies by brand and product. Modridge assists customers with eligible warranty claims and helps coordinate the review process with the manufacturer.

Contact us before returning, repairing, modifying, or discarding a product that may be defective. Order information, photographs, installation details, and diagnostic information may be required.

For coverage details and claim instructions, review our Warranty Policy.

Prop 65 Warning

WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov.
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
MSD Ignition Ignition Box, 6M-2 L, Analog, 45000V — 6560

$599.95

$599.95

460 Volts

Primary Voltage Minimum

480 Volts

Primary Voltage Maximum

45000 Volts

Secondary Voltage

Product Description

The MSD Ignition 6560 ignition box has a length of 8 in. Width is 3.5 in. Height is 2.25 in.


Additional Details

The configuration is capacitive discharge. The digital / analog is analog. The rev limiter adjustment method is module.

The primary voltage minimum is 460 volts. Construction uses aluminum with a blue powder-coated finish. Sold individually.

Multi-spark design. Includes a rev limiter. Provides timing control.

Spark energy minimum is 105 mj per Spark. Spark energy maximum is 115 mj per Spark. Weight is 3.5 lbs.

Spark duration degrees is 20 Degrees. This box comes with a 4,000 6,000 and 8,000 chip.

Specifications

Style
Capacitive Discharge
Digital / Analog
Analog
Marine
Yes
MultiSpark
Yes
Rev Limiter
Yes
Rev Limiter Adjustment Method
Module
Timing Control
Yes
Primary Voltage Minimum
460 Volts
Primary Voltage Maximum
480 Volts
Spark Energy Minimum
105 mj per Spark
Spark Energy Maximum
115 mj per Spark
Secondary Voltage
45000 Volts
Voltage Requirement Minimum
12 Volts
Voltage Requirement Maximum
18 Volts
RPM Maximum
15000
Current Draw / 1000 RPM
1 amp
Length
8 in
Width
3.5 in
Height
2.25 in
Weight
3.5 lbs
Spark Duration Degrees
20 Degrees
Material
Aluminum
Color
Blue
Finish
Powder Coat
Quantity
Kit
