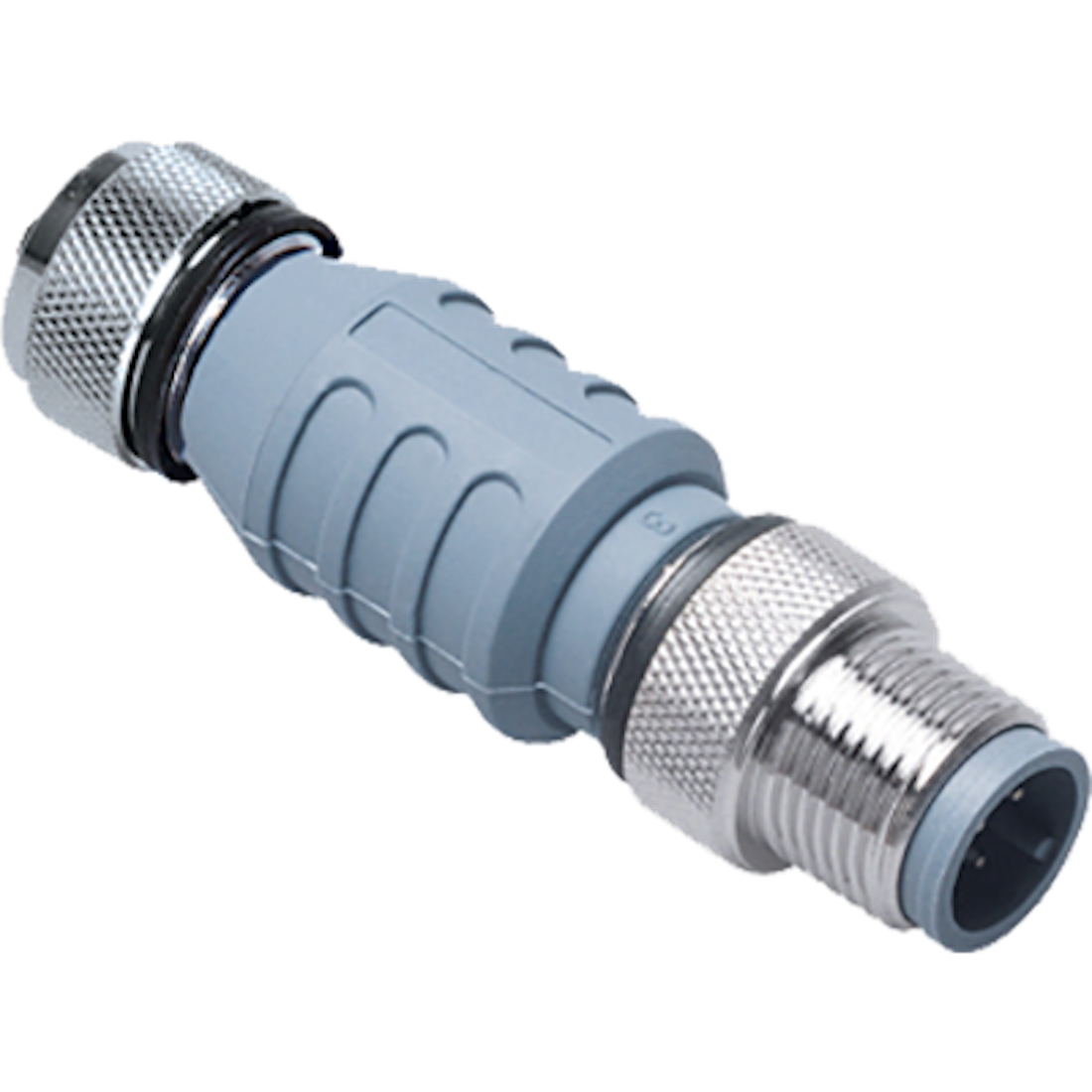

Maretron Marine Network Cable Terminator, Micro Inline 5-Pin Male x 5-Pin Female Terminator, Black Thermoplastic, 10 To 30 V DC - IT-CM-CF
Maretron Marine Network Cable Terminator, Micro Inline 5-Pin Male x 5-Pin Female Terminator, Black Thermoplastic, 10 To 30 V DC - IT-CM-CF
Maretron Marine Network Cable Terminator, Micro Inline 5-Pin Male x 5-Pin Female Terminator, Black Thermoplastic, 10 To 30 V DC - IT-CM-CF

Authorized Dealer

Maretron Marine Network Cable Terminator, Micro Inline 5-Pin Male x 5-Pin Female Terminator, Black Thermoplastic, 10 To 30 V DC - IT-CM-CF

SKU: IT-CM-CF

$32.99

Maretron Marine Network Cable Terminator, Micro Inline 5-Pin Male x 5-Pin Female Terminator, Black Thermoplastic, 10 To 30 V DC - IT-CM-CF

Termination resistors are used to terminate both ends of the trunk line.
Maretron Marine Network Cable Terminator, Micro Inline 5-Pin Male x 5-Pin Female Terminator, Black Thermoplastic, 10 To 30 V DC - IT-CM-CF

Screw terminal connector for positive connections.
Maretron Marine Network Cable Terminator, Micro Inline 5-Pin Male x 5-Pin Female Terminator, Black Thermoplastic, 10 To 30 V DC - IT-CM-CF

Inline terminator is used where the network is terminated at a product.
Maretron Marine Network Cable Terminator, Micro Inline 5-Pin Male x 5-Pin Female Terminator, Black Thermoplastic, 10 To 30 V DC - IT-CM-CF

Micro inline 5-pin male x 5-pin female terminator.
32 In Stock - Ships in 1-3 days

Shipping & Returns

Shipping

Most in-stock products ship within 1-3 business days. Your available shipping method and final shipping cost will be shown at checkout. Qualifying standard-shipping orders of $150 or more ship free, while larger items may require oversized or freight delivery.

For more information, view our Shipping Policy.

Returns

Changed your mind? Most products can be returned within 30 days of delivery as long as they are unused, uninstalled, and in their original condition.

Contact us to start a return, and we’ll guide you through the next steps.

For complete details, view our Returns & Refunds Policy.

Warranty

Available warranty coverage is provided by the manufacturer and varies by brand and product. Modridge assists customers with eligible warranty claims and helps coordinate the review process with the manufacturer.

Contact us before returning, repairing, modifying, or discarding a product that may be defective. Order information, photographs, installation details, and diagnostic information may be required.

For coverage details and claim instructions, review our Warranty Policy.

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Maretron Marine Network Cable Terminator, Micro Inline 5-Pin Male x 5-Pin Female Terminator, Black Thermoplastic, 10 To 30 V DC - IT-CM-CF

$32.99

$32.99

10-30 V DC

Voltage

Product Description

Two termination resistors are required on every NMEA 2000 network, one on each end of the trunk line. Normally, a male termination is used since male pins tend to point back to the power source. In cases where the gender is reversed, a female terminator may be required. The inline terminator is used where the network is terminated at a product, for example a GPS or weather station at the top of a mast.


Additional Details

  • Waterproof rated to IP67.
  • Used where the network is terminated at GPS/ weather station.
  • Approvals: NMEA 2000 approved/ IEC 61162-3.
  • 10 to 30 volt DC.

Specifications

Used To
Where The Network Is Terminated At GPS/ Weather Station
Type
Micro Inline 5-Pin Male X 5-Pin Female Terminator
Color
Black
Quantity
Single
Voltage
10 To 30 Volt DC
Additional Specification
IP68 Protected

Installation & Documents


Micro Term Feed thru Multi Datasheet.pdf
