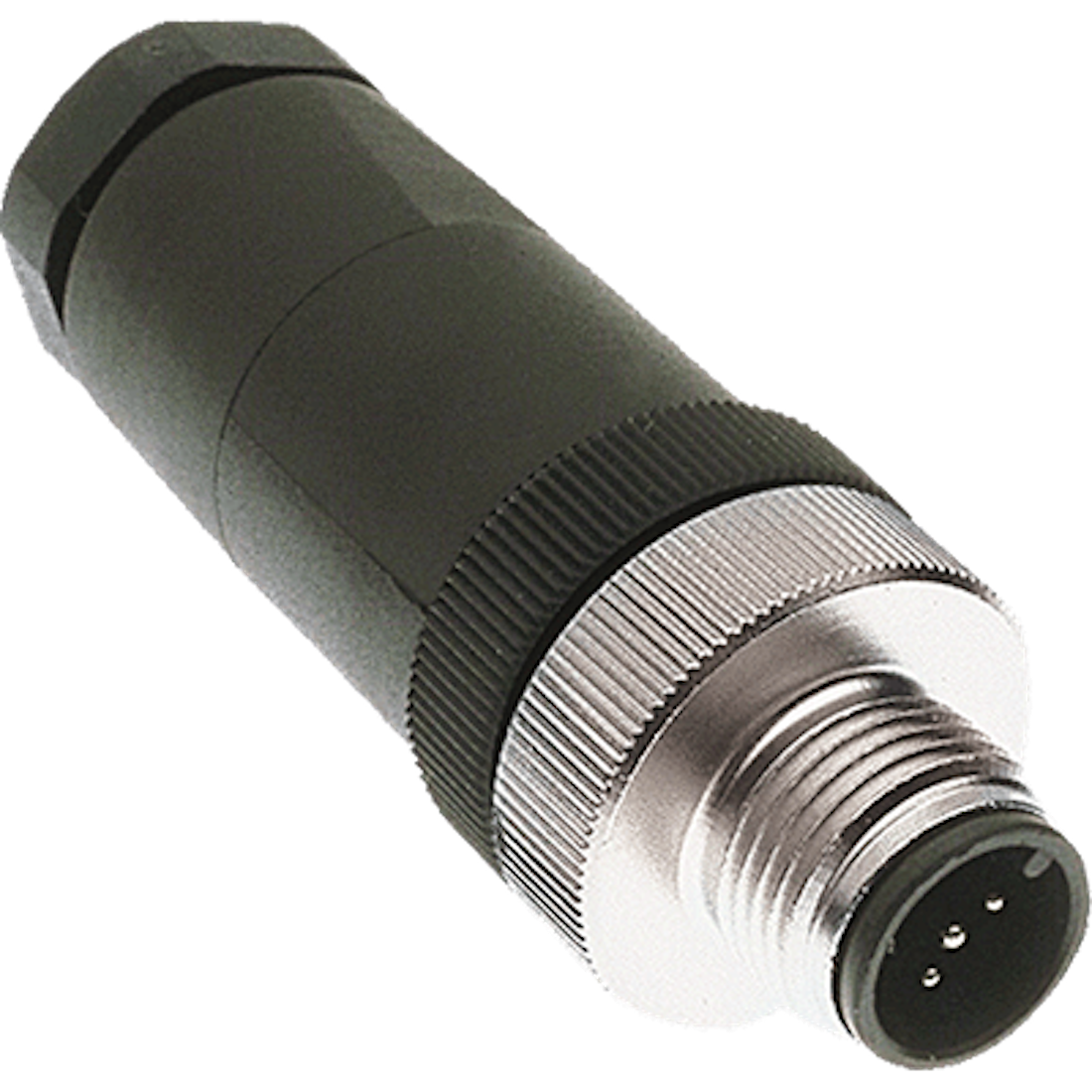

Maretron Marine Network Cable Connector, Micro/Mid Field Attachable 5-Pin Male Connector, Approvals: NMEA 2000 Approved/IEC 61162-3 - FA-CM-ST

SKU: FA-CM-ST

$32.99

Maretron Marine Network Cable Connector, Micro/Mid Field Attachable 5-Pin Male Connector, Approvals: NMEA 2000 Approved/IEC 61162-3 - FA-CM-ST

Color-coded screw terminals make for error-free field installation.

Maretron Marine Network Cable Connector, Micro/Mid Field Attachable 5-Pin Male Connector, Approvals: NMEA 2000 Approved/IEC 61162-3 - FA-CM-ST

Compatible with make field connections to bulk cable.

Maretron Marine Network Cable Connector, Micro/Mid Field Attachable 5-Pin Male Connector, Approvals: NMEA 2000 Approved/IEC 61162-3 - FA-CM-ST

Micro / mid field attachable 5-pin male connector.

Maretron Marine Network Cable Connector, Micro/Mid Field Attachable 5-Pin Male Connector, Approvals: NMEA 2000 Approved/IEC 61162-3 - FA-CM-ST

Black nylon housing construction.

57 In Stock - Ships in 1-3 days

Shipping & Returns

Shipping

Most in-stock products ship within 1-3 business days. Your available shipping method and final shipping cost will be shown at checkout. Qualifying standard-shipping orders of $150 or more ship free, while larger items may require oversized or freight delivery.

For more information, view our Shipping Policy.

Returns

Changed your mind? Most products can be returned within 30 days of delivery as long as they are unused, uninstalled, and in their original condition.

Contact us to start a return, and we’ll guide you through the next steps.

For complete details, view our Returns & Refunds Policy.

Warranty

Available warranty coverage is provided by the manufacturer and varies by brand and product. Modridge assists customers with eligible warranty claims and helps coordinate the review process with the manufacturer.

Contact us before returning, repairing, modifying, or discarding a product that may be defective. Order information, photographs, installation details, and diagnostic information may be required.

For coverage details and claim instructions, review our Warranty Policy.

  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Maretron Marine Network Cable Connector, Micro/Mid Field Attachable 5-Pin Male Connector, Approvals: NMEA 2000 Approved/IEC 61162-3 - FA-CM-ST

$32.99

$32.99

30 V AC/ 36 V DC

Voltage

Product Description

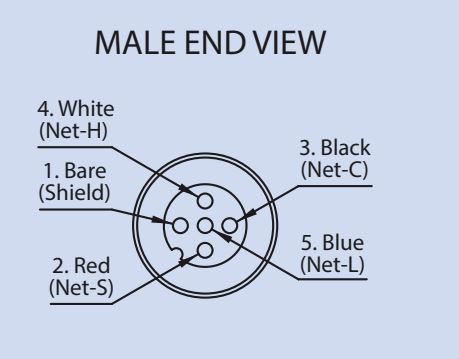

Field-attachable connectors allow you to make field connections to bulk cable (see diagram). The color-coded screw terminals match the individual wire colors found within the bulk cable for error-free field installation. Used to make field connections to bulk cable.


Additional Details

  • Rugged housing material designed to withstand harsh marine environments.
  • NMEA 2000 approved.
  • Waterproof rated to IP67.
  • Approvals: NMEA 2000 approved/ IEC 61162-3.
  • -40 to 185 degree fahrenheit operating temperature.

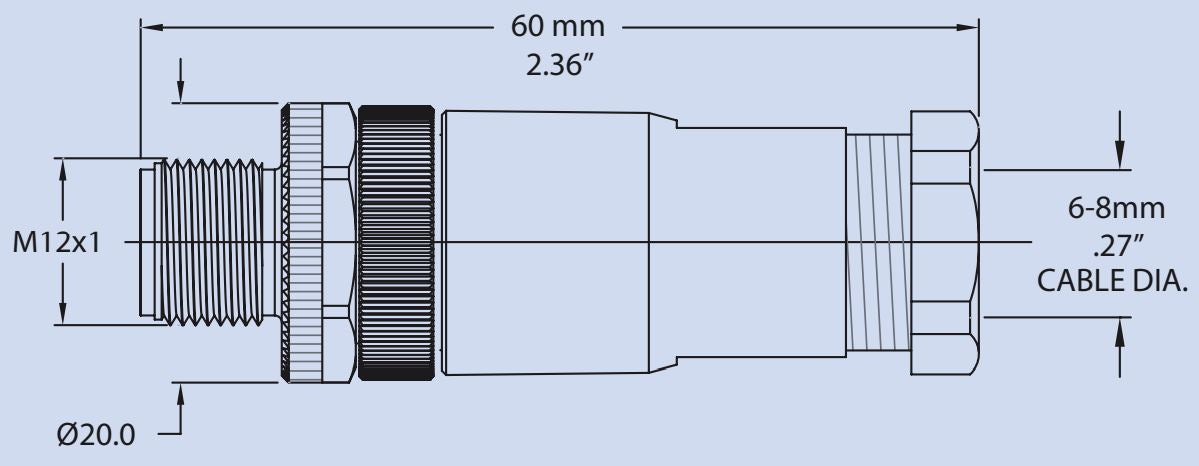

  • 20 millimeter diameter x 60 millimeter width.

Specifications

Compatibility
Make Field Connections To Bulk Cable
Type
Micro/ Mid Field Attachable 5-Pin Male Connector
Quantity
Single
Voltage
30 Volt AC/ 36 Volt DC
Additional Specification
Screw Terminal
Additional Specification
4 Ampere
Additional Specification
IP67 Waterproof
