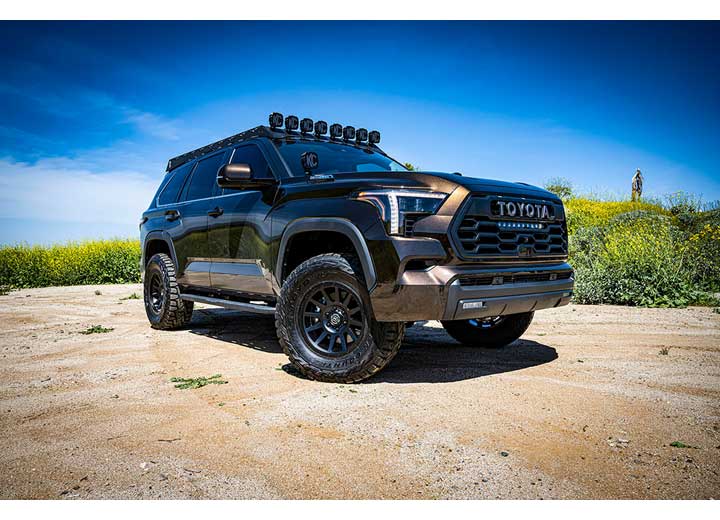

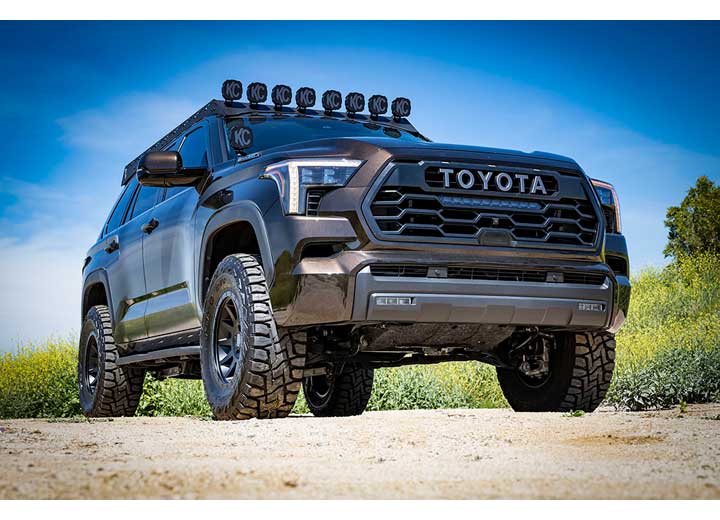

Icon Vehicle Dynamics 3-4.5 in Stage 4 Suspension System Billet for 2023-2025 Toyota Sequoia - K53234

Included sway bar drop brackets reduce bind in OE sway bar links. Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

Applications and Use

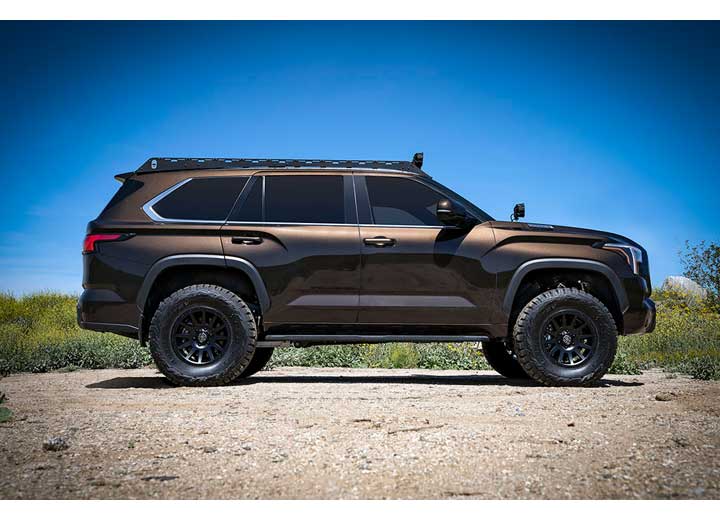

TECH NOTE: Most Sequoia submodels will have front lift height range of 3-4.5” over stock and 2" of rear lift over stock. Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-2.5" over stock and remain at stock height in the rear. If taller rear ride heights are desired, consider kit part number K53234S.

Operation and Performance

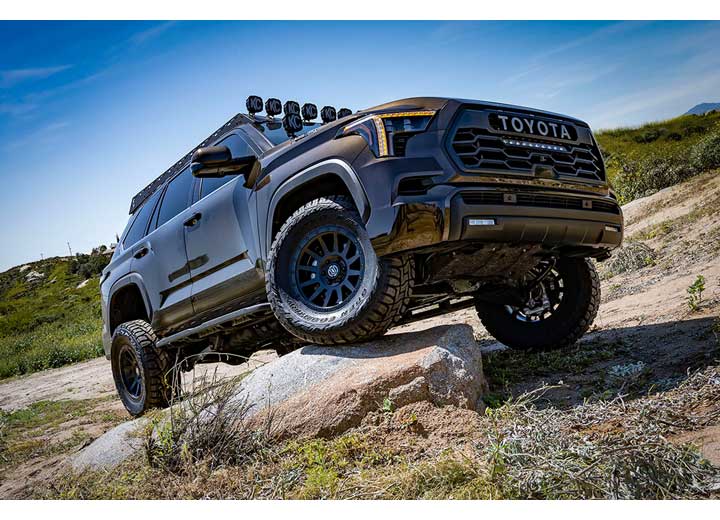

This system offers improved on- and off-road performance as well as improved alignment specs with front-end lift and leveling for a proper stance and fitment of up to 35" tires. Allows for full wheel travel without overstressing OE components.

UCAs feature the patented (U. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.

Construction and Design

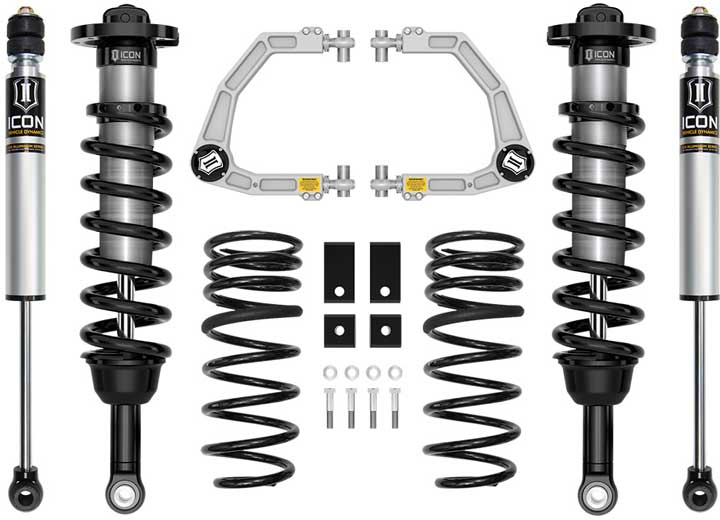

The ICON Vehicle Dynamics Stage 4 complete suspension system for the 2023 Toyota Sequoia builds upon the ICON threaded-body V. 2.5 Series Coilovers with the addition of adjustable billet aluminum front upper control arms. Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability.

Vehicle specific design for 2023 Toyota Sequoia.

Handling and Convenience

Adjustable front ride heights from 3-4.5 of front lift over stock.

Care and Maintenance

All ICON shock absorbers are fully rebuildable and re-tunable. Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

Requirements and Limitations

• For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. Not required f.
• Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
• If equipped with TRD aluminum skid plate part # 55164 is also required.
• Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles.
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install.

Warranty

Warranty coverage: 1 year on Shocks; 5 years on Delta Joint Pros; limited lifetime on Coil Springs, Front Upper Control Arms, Sway Bar Drop; excludes Wearable Items.
