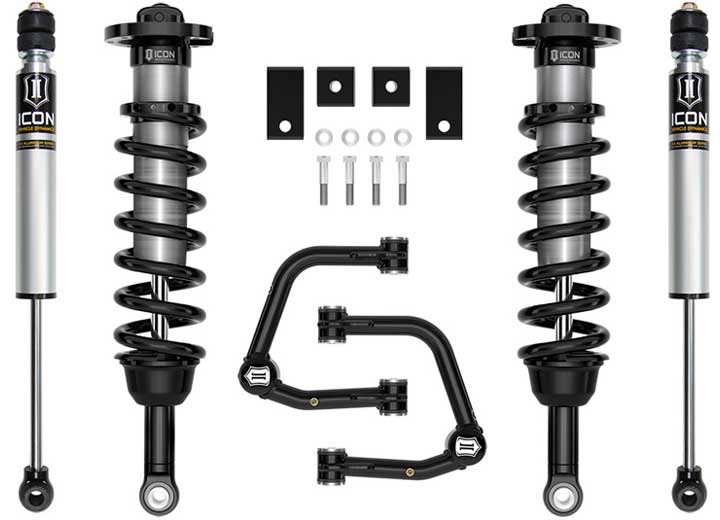

Icon Vehicle Dynamics 2-3.5 in Stage 4 Suspension System Tubular for 2022-2025 Toyota Tundra - K53194T

Included sway bar drop brackets reduce bind in OE sway bar links. Tubular UCAs for added strength, durability, and alignment correction for better drivability.

Applications and Use

TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil spr.

Operation and Performance

2.5 Series Coilovers with the addition of ICON tubular front upper control arms. This system offers improved on- and off-road performance as well as improved alignment specs and a taller front-end lift height range for a proper stance and fitment of up to 35" tires.

UCAs feature the patented (U. 10,731,700) Delta Joint Pro with 90 degrees of total articulation. Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift lange.

Handling and Convenience

Adjustable front ride heights from 2-3.5 of front lift over stock when used with included tubular UCAs.

Care and Maintenance

All ICON shock absorbers are fully rebuildable and re-tunable. Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

Installation and Setup

100% Bolt-on system - no drilling, cutting, or welding necessary for install.

Requirements and Limitations

• Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
• For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. Not required f.
• If equipped with TRD aluminum skid plate part # 55164 is also required.
• Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles.
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install.
• TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 2-3.5" over stock.
• TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 3-4.5” over stock.

Warranty

Warranty coverage: 1 year on Shocks; 5 years on Delta Joint Pros; limited lifetime on Coil Springs, Upper Control Arms, Sway Bar Drop; excludes Wearable Items.
