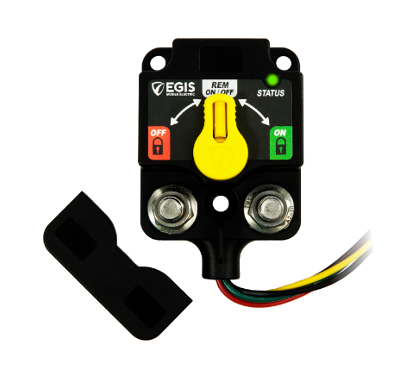

Egis Battery Disconnect Switch, 8 To 36 V DC, 500 amp, 1.3 amp Off-State Current Draw - 8710-1500
Egis Battery Disconnect Switch, 8 To 36 V DC, 500 amp, 1.3 amp Off-State Current Draw - 8710-1500

Authorized Dealer

Egis Battery Disconnect Switch, 8 To 36 V DC, 500 amp, 1.3 amp Off-State Current Draw - 8710-1500

SKU: 8710-1500

$117.99

Egis Battery Disconnect Switch, 8 To 36 V DC, 500 amp, 1.3 amp Off-State Current Draw - 8710-1500

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
Egis Battery Disconnect Switch, 8 To 36 V DC, 500 amp, 1.3 amp Off-State Current Draw - 8710-1500

Programmable via dip switches located under protective cover.
Egis Battery Disconnect Switch, 8 To 36 V DC, 500 amp, 1.3 amp Off-State Current Draw - 8710-1500

Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED.
Egis Battery Disconnect Switch, 8 To 36 V DC, 500 amp, 1.3 amp Off-State Current Draw - 8710-1500

For marine application.
Egis Battery Disconnect Switch, 8 To 36 V DC, 500 amp, 1.3 amp Off-State Current Draw - 8710-1500

8 to 36 V DC.
5 In Stock - Ships in 1-3 days

Shipping & Returns

Shipping

Most in-stock products ship within 1-3 business days. Your available shipping method and final shipping cost will be shown at checkout. Qualifying standard-shipping orders of $150 or more ship free, while larger items may require oversized or freight delivery.

For more information, view our Shipping Policy.

Returns

Changed your mind? Most products can be returned within 30 days of delivery as long as they are unused, uninstalled, and in their original condition.

Contact us to start a return, and we’ll guide you through the next steps.

For complete details, view our Returns & Refunds Policy.

Warranty

Available warranty coverage is provided by the manufacturer and varies by brand and product. Modridge assists customers with eligible warranty claims and helps coordinate the review process with the manufacturer.

Contact us before returning, repairing, modifying, or discarding a product that may be defective. Order information, photographs, installation details, and diagnostic information may be required.

For coverage details and claim instructions, review our Warranty Policy.

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Egis Battery Disconnect Switch, 8 To 36 V DC, 500 amp, 1.3 amp Off-State Current Draw - 8710-1500

$117.99

$117.99

8-36 V DC

Voltage

500 A

Continuous Ampere Rating

Rotary With Fixed Lever

Design

Product Description

500 Amp Continuous Capability Per Relay/ Extremely Compact Footprint. Available With or Without Intuitive Front Facing Manual Override Knobs with Ability to Lock Relays ON or OFF for Servicing. Flexible Functionality via Dip Switches, utilize each as a Relay/ Battery Disconnect, Voltage Sensing Relay or Low Voltage Disconnect. Improved Alternative Replacement to Legacy Remote Switching Solutions. Remote ON/ OFF/ Auto Inputs Allows Forced Close or Open or Allowing Automatic Operation Based on Voltage Sensing. Local and Remote LED Indicators Per Relay.


Additional Details

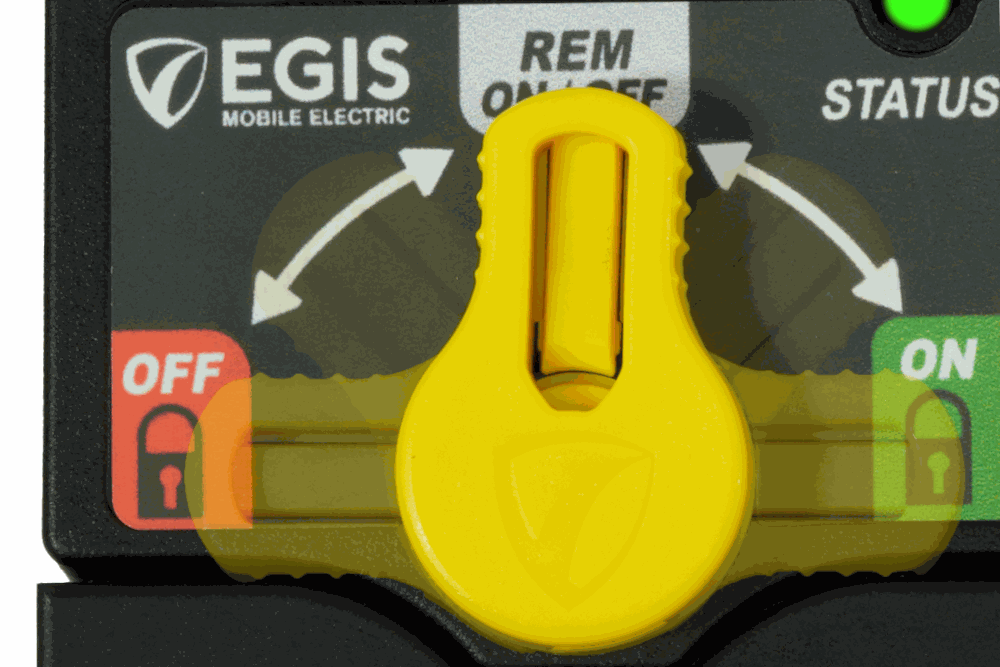

  • Force each individual relay open or closed and optionally leave knob in either position to lock relay in either condition.
  • Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.
  • High quality gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.
  • XD relays offers high amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.
  • Limited 4 year warranty.
  • XD single - flex 2 series.
  • 8 to 36 volt DC.
  • -40 to 105 degree celsius operating temperature.
  • Stainless steel self-locking hardware.
  • Tinned wires termination.

Specifications

Type
Rotary With Fixed Lever
Activation Type
Manual
Continuous Ampere Rating (A)
500 Amp
Installation Type
Bolt-On
Marine
Yes
Voltage
8 To 36 Volt DC
Additional Specification
Rotary Switch
Additional Specification
With Knob
Additional Specification
1500 Amp Max Cranking Current
Additional Specification
Relay Setting
Dimensions
3.15 Inch Length x 2.59 Width x 1.96 Inch Height

Installation & Documents


xd-series-flex-2-relay-vsr-specification-r4_80.pdf
