CSF Radiator, Aluminum Core With Plastic Tanks, 1-1/2 in Top Right And 1-1/2 in Bottom Left Hose Connections - 3744
CSF Radiator, Aluminum Core With Plastic Tanks, 1-1/2 in Top Right And 1-1/2 in Bottom Left Hose Connections - 3744

Authorized Dealer

CSF Radiator, Aluminum Core With Plastic Tanks, 1-1/2 in Top Right And 1-1/2 in Bottom Left Hose Connections - 3744

SKU: 3744

$171.99

CSF Radiator, Aluminum Core With Plastic Tanks, 1-1/2 in Top Right And 1-1/2 in Bottom Left Hose Connections - 3744

Gaskets are made from special grade "EPDM" rubber to withstand extreme temperatures of up to -120 degree fahrenheit.
CSF Radiator, Aluminum Core With Plastic Tanks, 1-1/2 in Top Right And 1-1/2 in Bottom Left Hose Connections - 3744

OEM specified plastic tank-aluminum core construction.
CSF Radiator, Aluminum Core With Plastic Tanks, 1-1/2 in Top Right And 1-1/2 in Bottom Left Hose Connections - 3744

Tanks are made from virgin grade engineered plastic resins, which are "glass filled" for added strength and durability.
CSF Radiator, Aluminum Core With Plastic Tanks, 1-1/2 in Top Right And 1-1/2 in Bottom Left Hose Connections - 3744

Welded type or latest generation "b-tube" design.
CSF Radiator, Aluminum Core With Plastic Tanks, 1-1/2 in Top Right And 1-1/2 in Bottom Left Hose Connections - 3744

High performance "multi-louvered design" - OEM spec.
110 In Stock - Ships in 1-3 days

Shipping & Returns

Shipping

Most in-stock products ship within 1-3 business days. Your available shipping method and final shipping cost will be shown at checkout. Qualifying standard-shipping orders of $150 or more ship free, while larger items may require oversized or freight delivery.

For more information, view our Shipping Policy.

Returns

Changed your mind? Most products can be returned within 30 days of delivery as long as they are unused, uninstalled, and in their original condition.

Contact us to start a return, and we’ll guide you through the next steps.

For complete details, view our Returns & Refunds Policy.

Warranty

Available warranty coverage is provided by the manufacturer and varies by brand and product. Modridge assists customers with eligible warranty claims and helps coordinate the review process with the manufacturer.

Contact us before returning, repairing, modifying, or discarding a product that may be defective. Order information, photographs, installation details, and diagnostic information may be required.

For coverage details and claim instructions, review our Warranty Policy.
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
CSF Radiator, Aluminum Core With Plastic Tanks, 1-1/2 in Top Right And 1-1/2 in Bottom Left Hose Connections - 3744

$171.99

$171.99

Top Right

Inlet Hose Location

1-1/2 in

Inlet Size

Bottom Left

Outlet Hose Location

Product Description

CSF Radiator (3744). Finish: natural.


Additional Details

  • Fins: high performance "multi-louvered design" - OEM spec.
  • 100 percent leak tested before leaving factory at 150 percent of operating pressure.
  • High performance transmission cooler with special built-in turburlator, when applicable.
  • All components are installed, torqued, and tested on radiator during assembly.

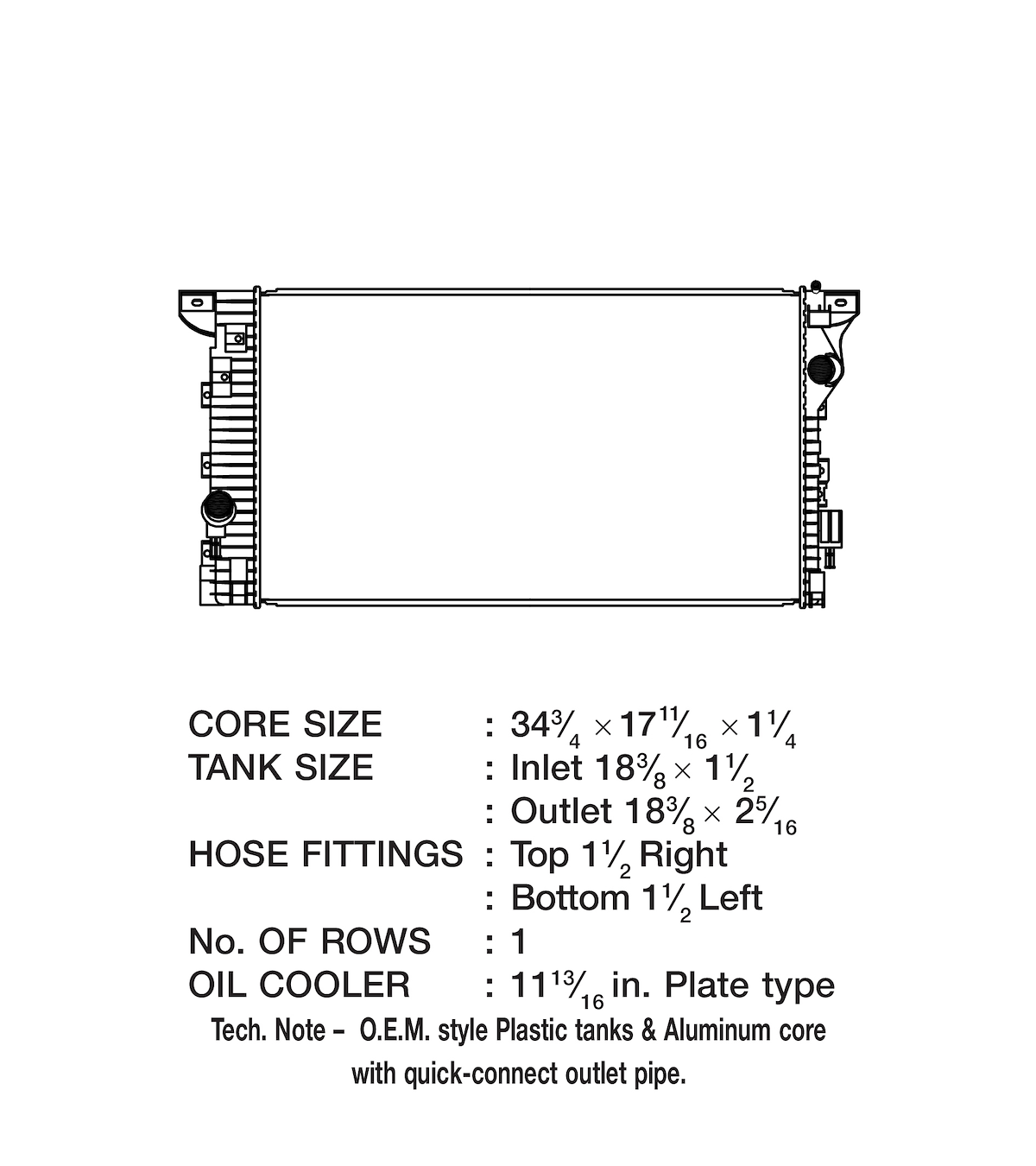

  • Core dimensions 34-3/4 inch length x 17-11/16 inch height x 1-1/4 inch depth.
  • With transmission cooler.
  • With engine oil cooler.
  • With quick-connect outlet pipe.
  • Without radiator cap.

Specifications

Flow Direction
Cross Flow
Overall Length (IN)
OEM
Overall Height (IN)
OEM
Overall Depth (IN)
OEM
Core Rows
Single
Core Material
Aluminum
Inlet Hose Location
Top Right
Inlet Size (IN)
1-1/2 Inch
Outlet Hose Location
Bottom Left
Outlet Size (IN)
1-1/2 Inch
Finish
Natural
Color
Black/ Silver
Core Length (IN)
34-3/4 Inch
Core Height (IN)
17-11/16 Inch
Core Depth (IN)
1-1/4 Inch
Tank Material
Plastic
With Radiator Cap
No
With Transmission Cooler
Yes
With Engine Oil Cooler
Yes
Includes Fittings
Yes
Includes Mounting Hardware
No
Additional Specification
One Row
Additional Specification
Crossflow

Fitment / Application

2015-2016 Ford F-150 V6; 3.5L/3496; GAS; DI; Turbocharged; EcoBoost
2015-2017 Ford F-150 V6; 3.5L/3496; FLEX/GAS; MFI; Duratec
2015-2017 Ford F-150 V6; 2.7L/164; GAS; Turbocharged; DI
2015-2017 Ford F-150 V8; 5.0L/4951; FLEX/GAS; MFI
