ARB Air Compressor, 150 PSI Maximum Working Pressure, 12 V - CKMTA12

SKU: CKMTA12

$659.95

ARB Air Compressor, 150 PSI Maximum Working Pressure, 12 V - CKMTA12

High density and high flow washable sintered bronze air filter elements.
ARB Air Compressor, 150 PSI Maximum Working Pressure, 12 V - CKMTA12

Hard-anodized cylinder bores and PTFE impregnated carbon fiber piston seals for reduced friction and trouble free life.
ARB Air Compressor, 150 PSI Maximum Working Pressure, 12 V - CKMTA12

Motors are internally thermal protected against extreme temperature damage.
ARB Air Compressor, 150 PSI Maximum Working Pressure, 12 V - CKMTA12

Anti-vibration / sound deadening is integrated into the mount. Includes sealed illuminated automotive grade dash switch.
ARB Air Compressor, 150 PSI Maximum Working Pressure, 12 V - CKMTA12

Full wiring loom included for simplified installation and easy plug-in connectivity to air locker control solenoids.
58 In Stock - Ships in 1-3 days

Shipping & Returns

Shipping

Most in-stock products ship within 1-3 business days. Your available shipping method and final shipping cost will be shown at checkout. Qualifying standard-shipping orders of $150 or more ship free, while larger items may require oversized or freight delivery.

For more information, view our Shipping Policy.

Returns

Changed your mind? Most products can be returned within 30 days of delivery as long as they are unused, uninstalled, and in their original condition.

Contact us to start a return, and we’ll guide you through the next steps.

For complete details, view our Returns & Refunds Policy.

Warranty

Available warranty coverage is provided by the manufacturer and varies by brand and product. Modridge assists customers with eligible warranty claims and helps coordinate the review process with the manufacturer.

Contact us before returning, repairing, modifying, or discarding a product that may be defective. Order information, photographs, installation details, and diagnostic information may be required.

For coverage details and claim instructions, review our Warranty Policy.
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
ARB Air Compressor, 150 PSI Maximum Working Pressure, 12 V - CKMTA12

$659.95

$659.95

150 psi

Max Pressure

12 V

Power Source

56 A

Current Rating

Product Description

ARB's new twin on-board compressor kits were designed to fill the market need for a compact sized yet high-volume compressed air source to suit the high volume airflow needs of most air powered tools and also to suit the actuation and control needs of the ARB Air Locker and the harsh and demanding environment of the ARB Air Locker user.


Additional Details

  • Constructed primarily of light weight, high strength, engineering grade materials, including military and aerospace standard components.
  • Built with sealed components for moisture and dust resistance. high density and high flow washable sintered bronze air filter elements.
  • Hard-anodized cylinder bores and PTFE impregnated carbon fiber piston seals for reduced friction and trouble free life. motors are internally thermal protected against extreme temperature damage.
  • Ducted IP55 sealed brushless DC cooling fan and anodized motor mounting brackets effectively dissipate heat from the motors, heads and electronics allowing for a 100 percent duty cycle.
  • Relocatable splash resistant air filter assemblies for cleaner, cooler air supply and versatile waterproof air intake positioning.
  • Limited 2 year warranty.
  • 150 PSI maximum working pressure.
  • 6.16 cubic feet per minute (CFM) at 0 PSI/ 4.68 cubic feet per minute (CFM) at 29 PSI.

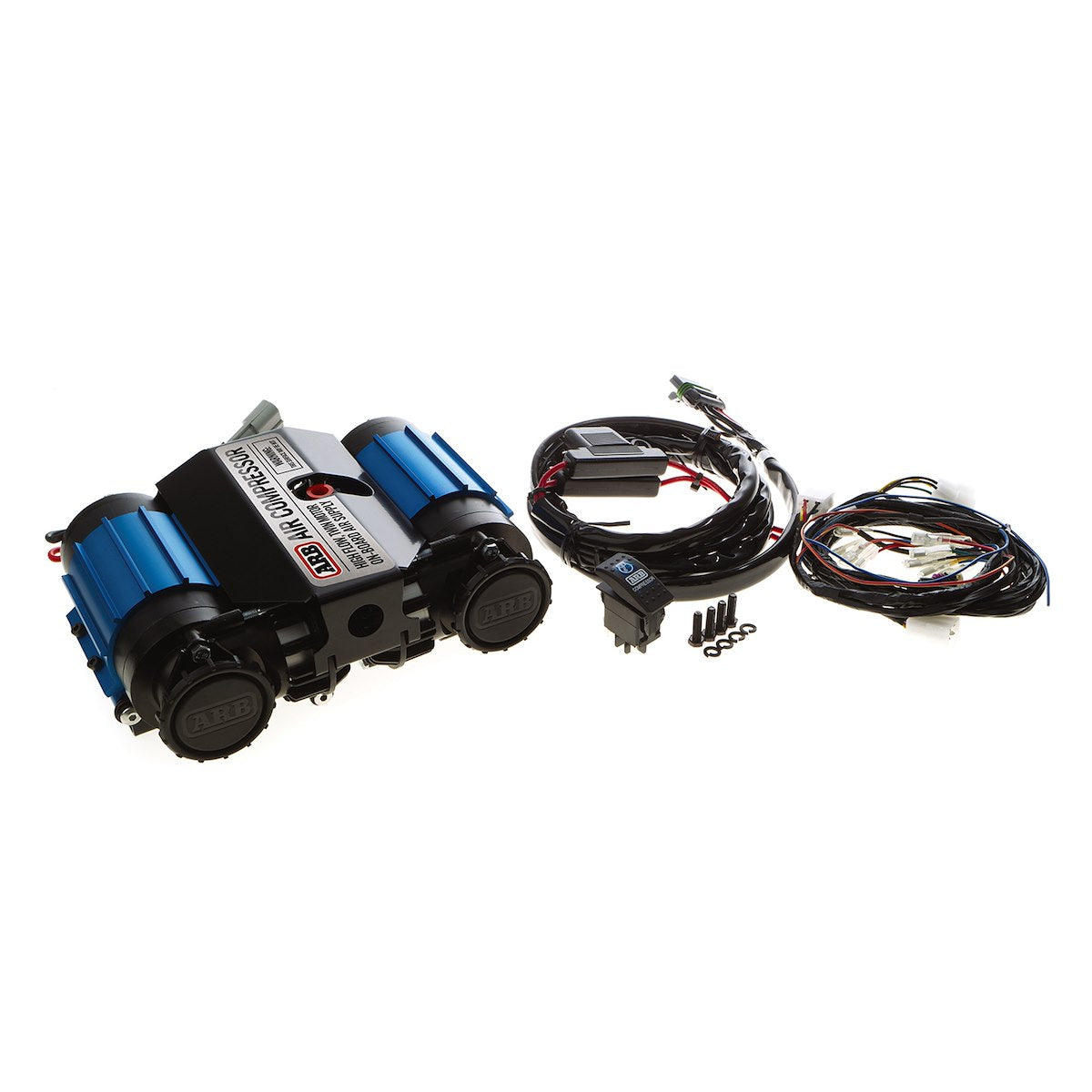

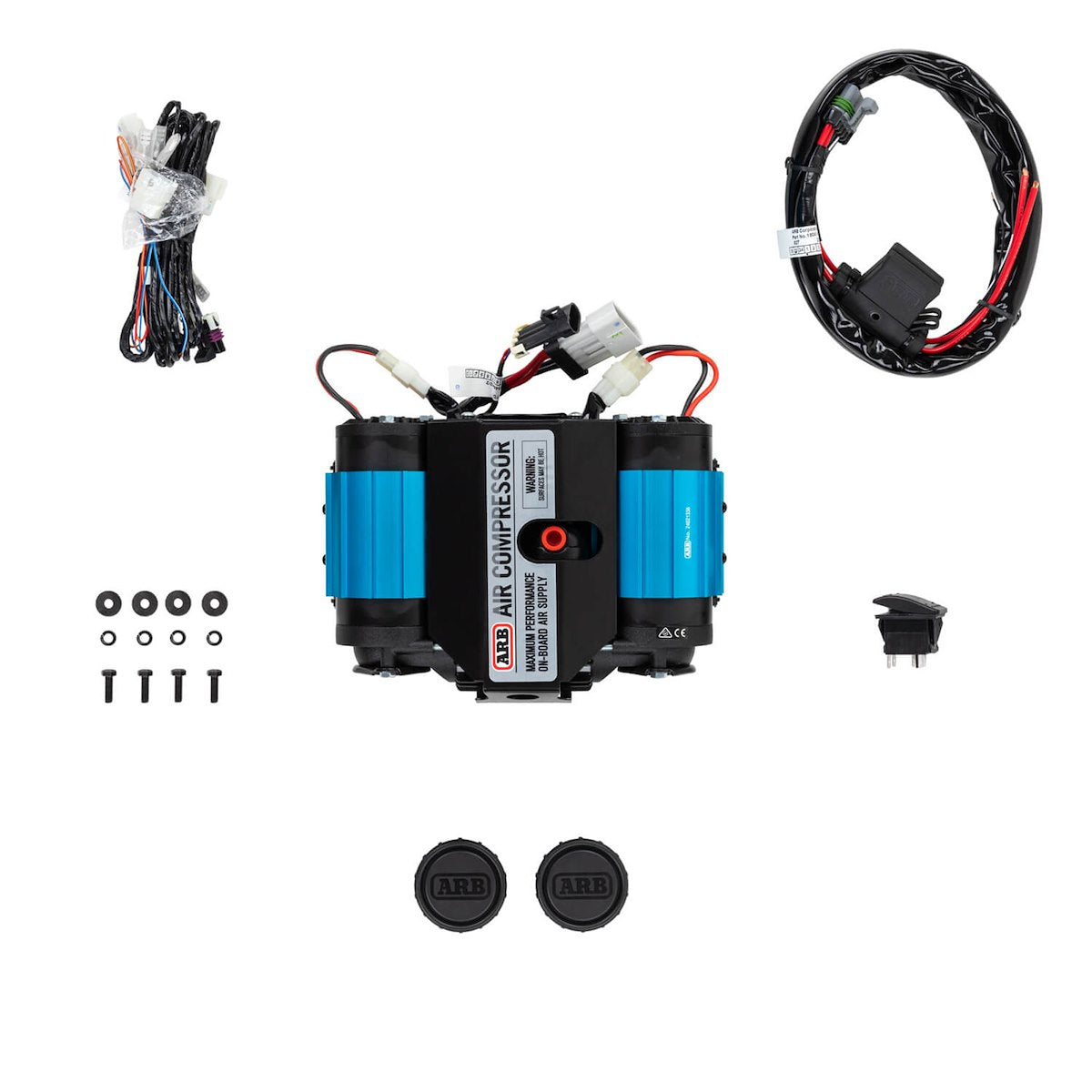

  • With twin on-board compressor/ sealed illuminated automotive grade dash switch/ full wiring loom.

Specifications

Condition
New
Type
On-Board
Maximum Pressure Rating (PSI)
150 Pounds Per Square Inch
Air Flow Rating
6.16 CFM At 0 Pounds Per Square Inch/ 4.68 CFM At 29 Pounds Per Square Inch
Power Source
12 Volt
Amperage
56 Amp
Includes Air Lines
No
Includes Pressure Gauge
No
Color
Black/ Blue

Installation & Documents


CKMTA12_Installation Guide.pdf
arb-4x4-accessories-1-arb-usa-warranty-booklet-oct-2020.pdf
