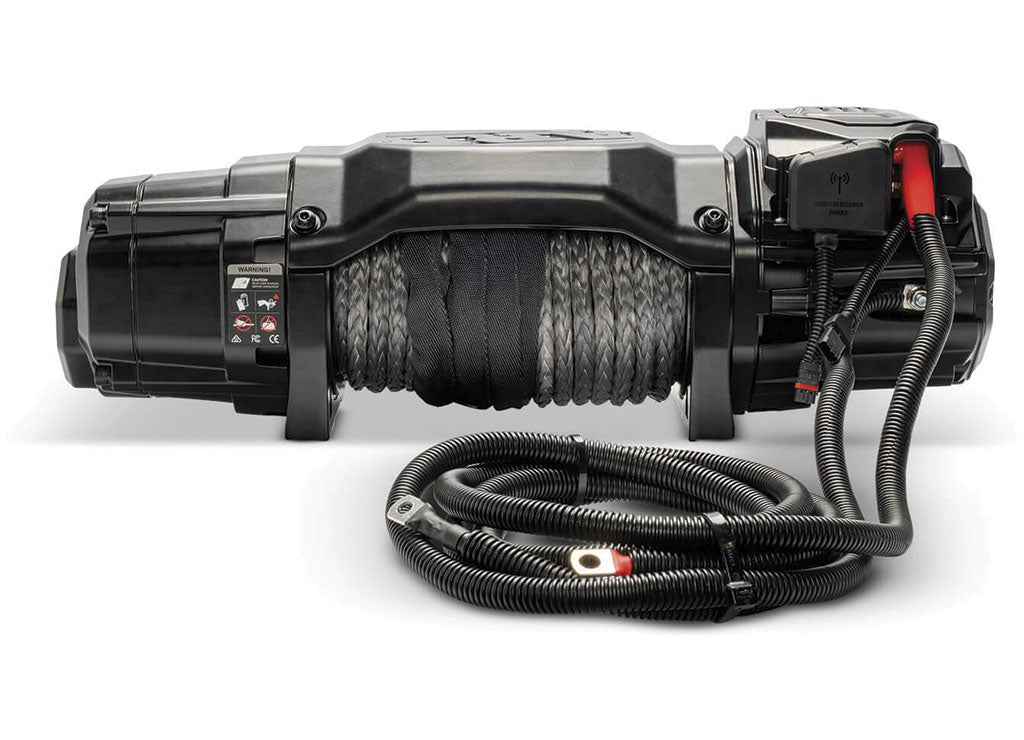

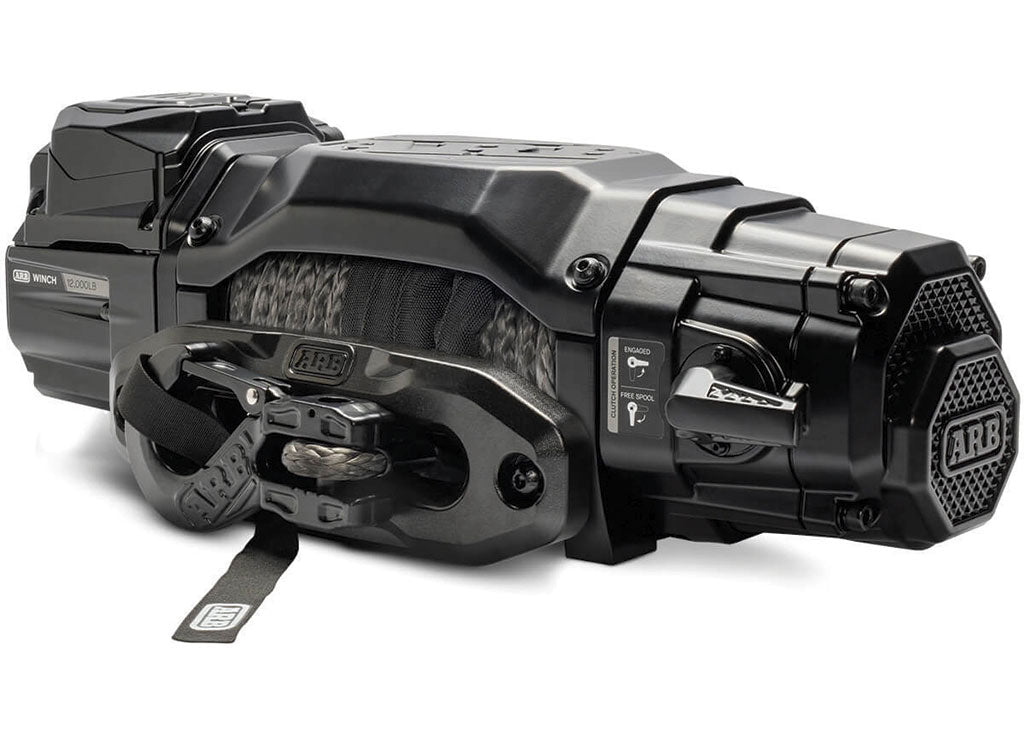

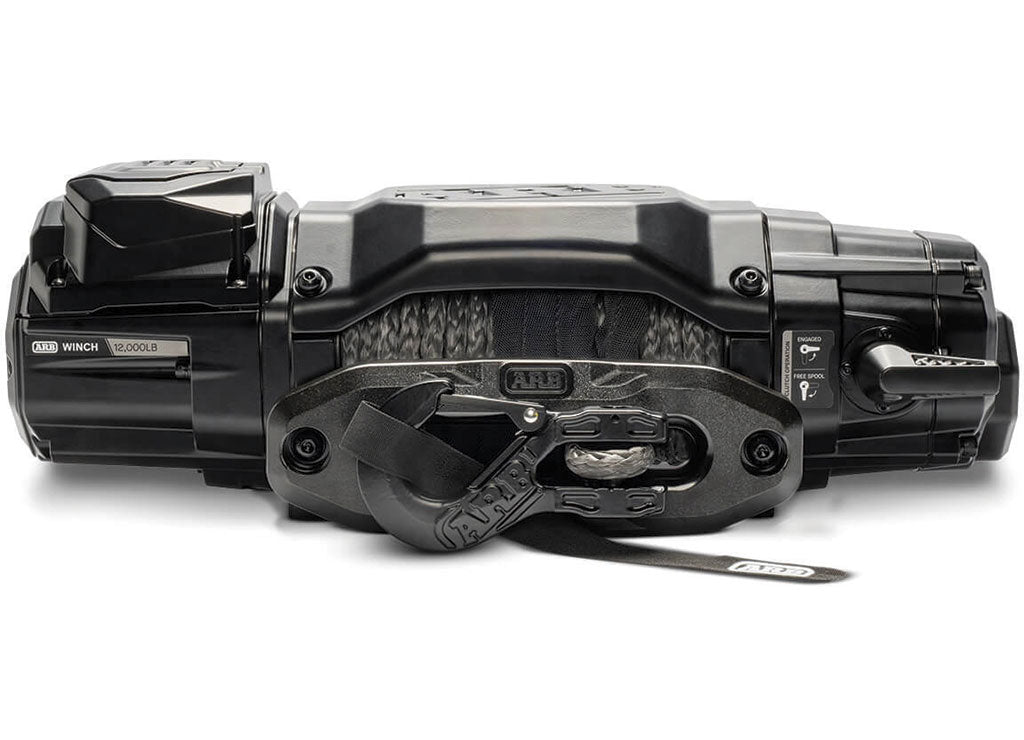

ARB Winch 12,000 lb, Black - ARW120SA

The ARB ARW120SA is the Winch 12,000 lb, Black.

Operation and Performance

Built with top-tier components and validated through rigorous performance testing, the integrated motor control unit sits within the winch itself, allowing it to work seamlessly with modern bumpers and vehicle sensors.

Construction and Design

The next generation of winch technology arrives with a compact, all-in-one motor control design that delivers clean fitment and smooth, reliable operation. Engineered for durability and long service life, the ARB Winch incorporates a 4-stage hardened steel gearbox for maximum toughness, a one-piece bridging plate for improved torsional rigidity, and a tuned 12-volt motor that delivers fast line speeds. The system is completed with a 500-amp power isolation switch equipped with a stainless lanyard and protective dust cover.

4-Stage Gearbox with hardened steel gears provides improved load distribution with, the 171:1 ratio allows for fast line speed while maintaining pulling power. One piece bridging plate offers greater torsional strength.

Installation and Setup

A custom Albright contactor is built in to provide seamless power, while the direct-connection design enhances motor efficiency for steady, responsive control without the need for a separate control box. The system also features a compact pre-wired layout for quick installation, a 16-position clockable clutch handle for flexible mounting, and an IP68 rating that protects against dust and water intrusion. A gearbox-mounted brake ensures 100% load holding even in demanding conditions.

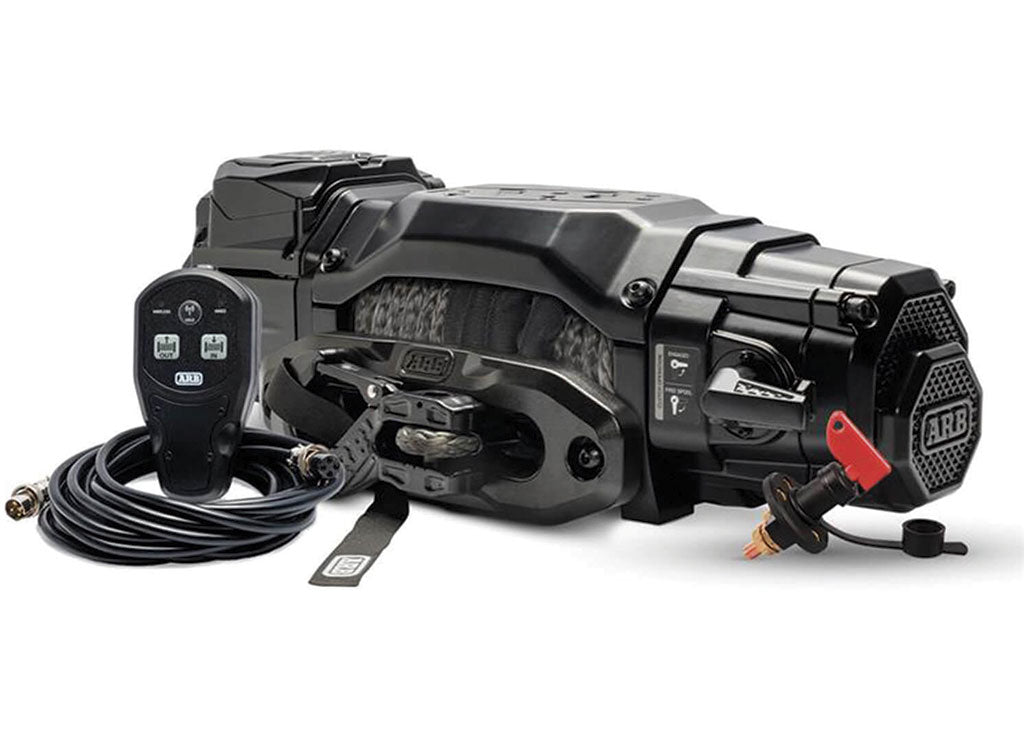

Control is managed through a compact hand controller that works wirelessly at distances up to forty meters or via a five-meter lead for direct connection. Prewired connections, versatile mounting options, and preset clutch positioning allow for fast and hassle-free installation. 16 positions (22.5 deg) for clocking the clutch handle for more installation options.

The ARB Winch features a custom Albright contactor that connects directly to the motor. This improvement increases efficiency and removes the need for a bulky control box.

What's Included

• a stainless lanyard and dust cover for safe and reliable operation.
• A 500A isolation switch with universal mount is included with the ARB Winch.

Warranty

Warranty coverage: limited lifetime, with 7 years on electrical components.
