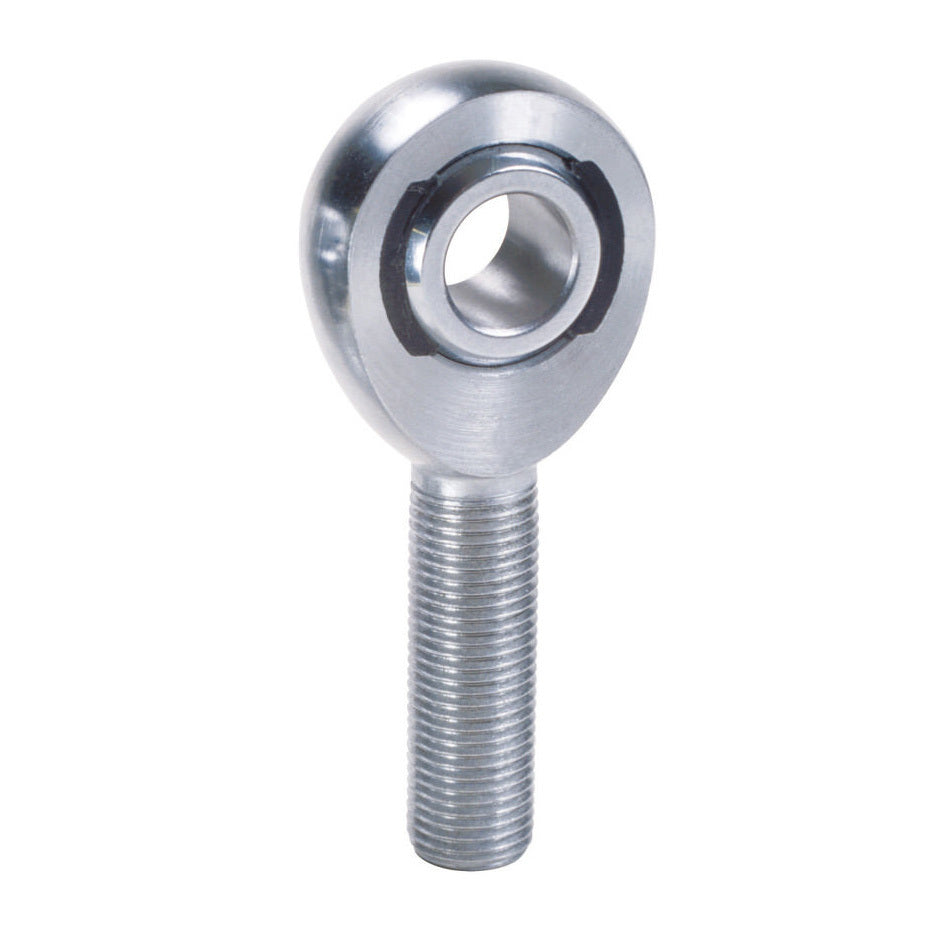

QA1 Rod End XML10-12 — product image 1

Authorized Dealer

QA1 Rod End, XM Series, 5/8 in Bore, 3/4-16 in Left Hand Male Thread — XML10-12

SKU: XML10-12

$45.99

QA1 Rod End, XM Series, 5/8 in Bore, 3/4-16 in Left Hand Male Thread — XML10-12

Uses a 0.625 in bore.
QA1 Rod End, XM Series, 5/8 in Bore, 3/4-16 in Left Hand Male Thread — XML10-12

Misalign angle is 13 degrees.
QA1 Rod End, XM Series, 5/8 in Bore, 3/4-16 in Left Hand Male Thread — XML10-12

The housing uses chromoly construction.
QA1 Rod End, XM Series, 5/8 in Bore, 3/4-16 in Left Hand Male Thread — XML10-12

The spherical ball uses steel construction.
QA1 Rod End, XM Series, 5/8 in Bore, 3/4-16 in Left Hand Male Thread — XML10-12

Uses PTFE lining.
38 In Stock - Ships in 1-3 days

Shipping & Returns

Shipping

Most in-stock products ship within 1-3 business days. Your available shipping method and final shipping cost will be shown at checkout. Qualifying standard-shipping orders of $150 or more ship free, while larger items may require oversized or freight delivery.

For more information, view our Shipping Policy.

Returns

Changed your mind? Most products can be returned within 30 days of delivery as long as they are unused, uninstalled, and in their original condition.

Contact us to start a return, and we’ll guide you through the next steps.

For complete details, view our Returns & Refunds Policy.

Warranty

Available warranty coverage is provided by the manufacturer and varies by brand and product. Modridge assists customers with eligible warranty claims and helps coordinate the review process with the manufacturer.

Contact us before returning, repairing, modifying, or discarding a product that may be defective. Order information, photographs, installation details, and diagnostic information may be required.

For coverage details and claim instructions, review our Warranty Policy.

Prop 65 Warning

WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov.
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
QA1 Rod End, XM Series, 5/8 in Bore, 3/4-16 in Left Hand Male Thread — XML10-12

$45.99

$45.99

Male

Thread Style

Left Hand

Thread Direction

3/4-16 in

Thread Size

Product Description

For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out. The ball is made of 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The PTFE race is self-lubricating and self-sealing, and the body is made from heat treated chromoly steel that has a protective coating for corrosion resistance. EXCLUSIVE FEATURES: Metal to metal support for heavy shock loads and increased cross-sectional thickness for greater tensile strength.


Additional Details

The bore measures 0.625 in, with a 3/4-16 in left hand male thread. The rod end has a liner. The misalign angle is 13 degrees.

The housing color is zinc. The finish is oxide. Configuration: XM Series.

Sold individually.

Lined construction.

Specifications

Thread Size
3/4-16 in
Thread Style
Male
Thread Direction
Left Hand
Bore Size
0.625 in
Misalign Angle
13 degrees
Jam Nut Included
No
Lined
Yes
Lining Material
PTFE
Spherical Ball Material
Steel
Housing Material
Chromoly
Housing Color
Zinc
Finish
Oxide
Quantity
Each
