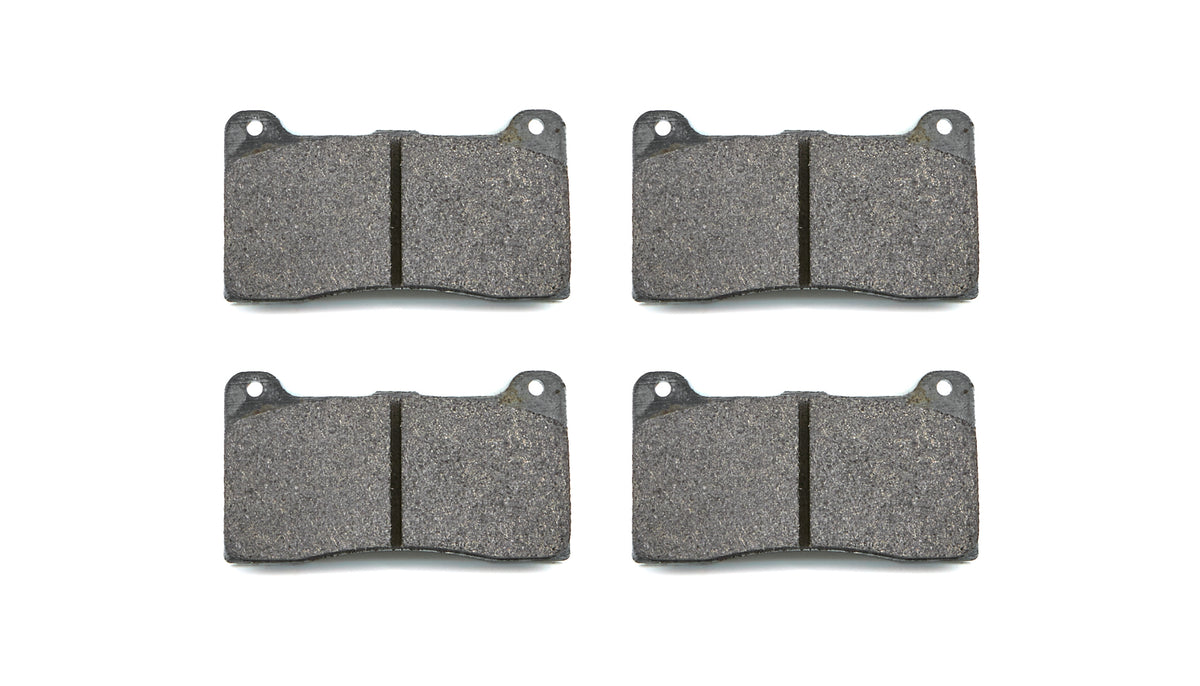

Wilwood Brake Pads 150-35-7816K — product image 1

Authorized Dealer

Wilwood Brake Pads, High Temperature Racing Pads, BP-35 Compound, 15.2 mm Thick, Set of 4 — 150-35-7816K

SKU: 150-35-7816K

$220.36

Wilwood Brake Pads, High Temperature Racing Pads, BP-35 Compound, 15.2 mm Thick, Set of 4 — 150-35-7816K

The recommended operating temperature maximum is 1000 degrees fahrenheit.
Wilwood Brake Pads, High Temperature Racing Pads, BP-35 Compound, 15.2 mm Thick, Set of 4 — 150-35-7816K

Recommended operating range is 500 F to 1000 F.
Wilwood Brake Pads, High Temperature Racing Pads, BP-35 Compound, 15.2 mm Thick, Set of 4 — 150-35-7816K

High Temperature Racing Pads brake-pad design.
Wilwood Brake Pads, High Temperature Racing Pads, BP-35 Compound, 15.2 mm Thick, Set of 4 — 150-35-7816K

Supplied as a set of 4.
20 In Stock - Ships in 1-3 days

Shipping & Returns

Shipping

Most in-stock products ship within 1-3 business days. Your available shipping method and final shipping cost will be shown at checkout. Qualifying standard-shipping orders of $150 or more ship free, while larger items may require oversized or freight delivery.

For more information, view our Shipping Policy.

Returns

Changed your mind? Most products can be returned within 30 days of delivery as long as they are unused, uninstalled, and in their original condition.

Contact us to start a return, and we’ll guide you through the next steps.

For complete details, view our Returns & Refunds Policy.

Warranty

Available warranty coverage is provided by the manufacturer and varies by brand and product. Modridge assists customers with eligible warranty claims and helps coordinate the review process with the manufacturer.

Contact us before returning, repairing, modifying, or discarding a product that may be defective. Order information, photographs, installation details, and diagnostic information may be required.

For coverage details and claim instructions, review our Warranty Policy.
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Wilwood Brake Pads, High Temperature Racing Pads, BP-35 Compound, 15.2 mm Thick, Set of 4 — 150-35-7816K

$220.36

$220.36

15.2 mm

Pad Thickness

3.96 in

Pad Width Inner

100.6 mm

Pad Width

Product Description

Wilwood 150-35-7816K brake pads — inner and outer pads each measure 100.6 mm wide, 56 mm high and 15.2 mm thick. The compound is BP-35. The hawk pad shape is HB237.625.


Additional Details

The wilwood pad shape is 7816. The performance friction pad shape is 7754/16. The recommended operating temperature minimum is 500 degrees fahrenheit.

The recommended operating temperature maximum is 1000 degrees fahrenheit. Configuration: High Temperature Racing Pads.

Pad height inner is 2.21 in. Overall thickness inner is 0.60 in. Pad width outer is 3.96 in.

Pad height outer is 2.21 in. Overall thickness outer is 0.60 in.


What’s Included

  • 4 × brake pads

Specifications

Compound
BP-35
Hawk Pad Shape
HB237.625
Wilwood Pad Shape
7816
Performance Friction Pad Shape
7754/16
Recommended Operating Temperature Minimum
500 Degrees Fahrenheit
Recommended Operating Temperature Maximum
1000 Degrees Fahrenheit
Pad Width Inner (in)
3.96 in
Pad Width Inner (mm)
100.6 mm
Pad Height Inner (in)
2.21 in
Pad Height Inner (mm)
56 mm
Overall Thickness Inner (in)
0.60 in
Overall Thickness Inner (mm)
15.2 mm
Pad Width Outer (in)
3.96 in
Pad Width Outer (mm)
100.6 mm
Pad Height Outer (in)
2.21 in
Pad Height Outer (mm)
56 mm
Overall Thickness Outer (in)
0.60 in
Overall Thickness Outer (mm)
15.2 mm
Hardware Included
No
Number of Pads Included
4
Universal
Yes
Quantity
Set of 4
